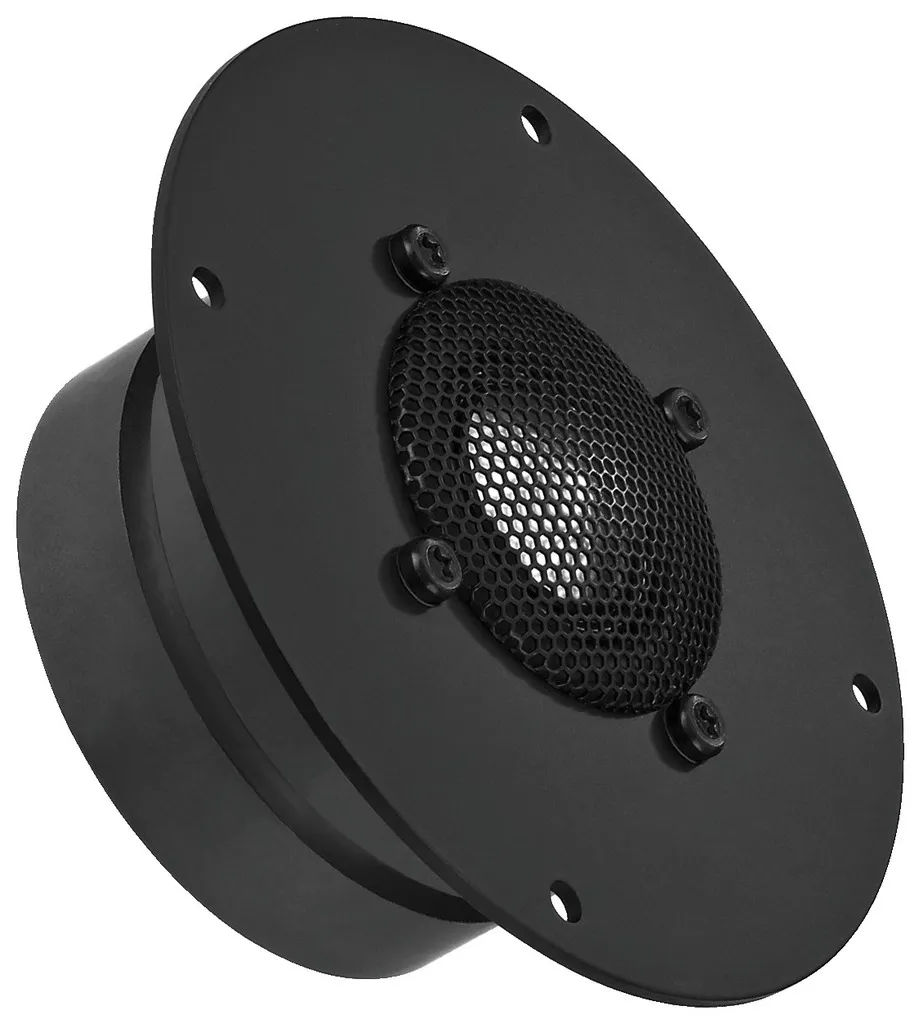

1" dome tweeter
Varenummer:
139-616
Varekode: DT-350NF
Vægt: 866 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
| Impedance (Z) | 8 Ω |
| Frequency range | fx-25,000 Hz |
| Resonant frequency (fs) | 800 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 2,000 Hz/1,500 Hz (18 dB) |
| Power rating (PRMS) | 80 W |
| Peak music power output (PMAX) | 150 W |
| Sensitivity | 91 dB/W/m |
| Voice coil diameter | 25 mm |
| Magnet diameter | 72 mm |
| Mounting cutout | Ø 74 mm |
| Mounting depth | 42 mm |
| Dimensions | Ø 110 mm |
| Protective class | |
| Weight | 0.80 kg |
| Type of speaker |
Hi-fi dome tweeter, 80 W, 8 Ω
- 25 mm (1") metal dome, finest resolution of the high frequency range
- No ferrofluid in the air gap of the drive system
- Special light metal alloy without resonance behaviour typical for metal
- Double magnet system with drilled pole core
- Damped coupling volume for a low resonant frequency
- For use with a crossover frequency from 1,500 Hz on via 18 dB filter
- Very wide radiation range of up to 25 kHz and beyond
Klang+Ton 01/2014
"The tweeter DT-350NF is very able. It delivers a brilliant resolution and a very smooth, silky and effortless sound."
(Together with the SPM-6H in the Klang+Ton speaker building concept GT6)
HOBBY HIFI 01/2014
"With the DT-350NF, MONACOR offers a true high-end tweeter which is available at a really competitive price.
... ideal features to provide a perfect resolution and a crystal-clear performance, even at very low volume levels."
"The tweeter DT-350NF is very able. It delivers a brilliant resolution and a very smooth, silky and effortless sound."
(Together with the SPM-6H in the Klang+Ton speaker building concept GT6)
HOBBY HIFI 01/2014
"With the DT-350NF, MONACOR offers a true high-end tweeter which is available at a really competitive price.
... ideal features to provide a perfect resolution and a crystal-clear performance, even at very low volume levels."
Inkl. moms
Kr. 619,00
