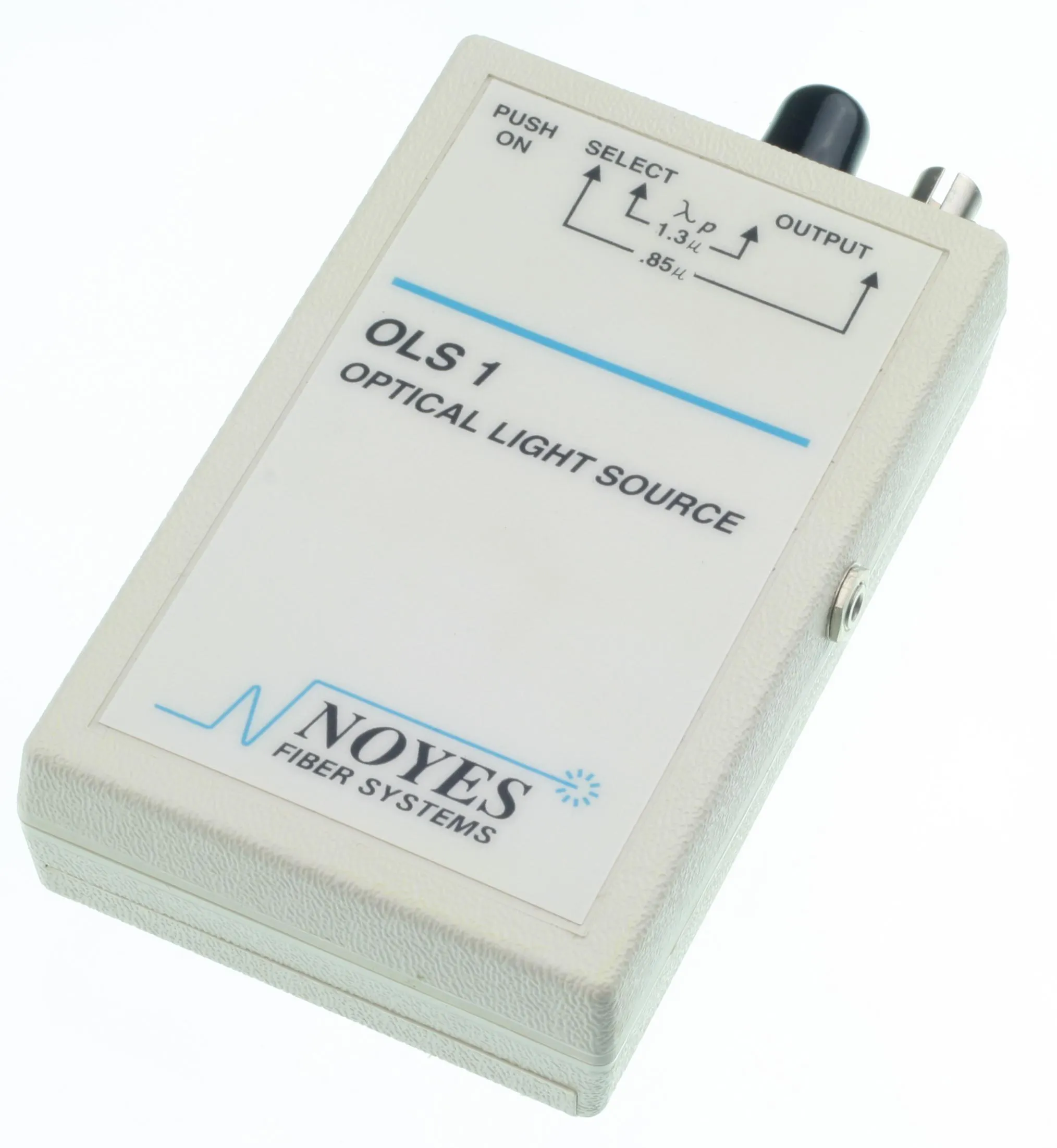

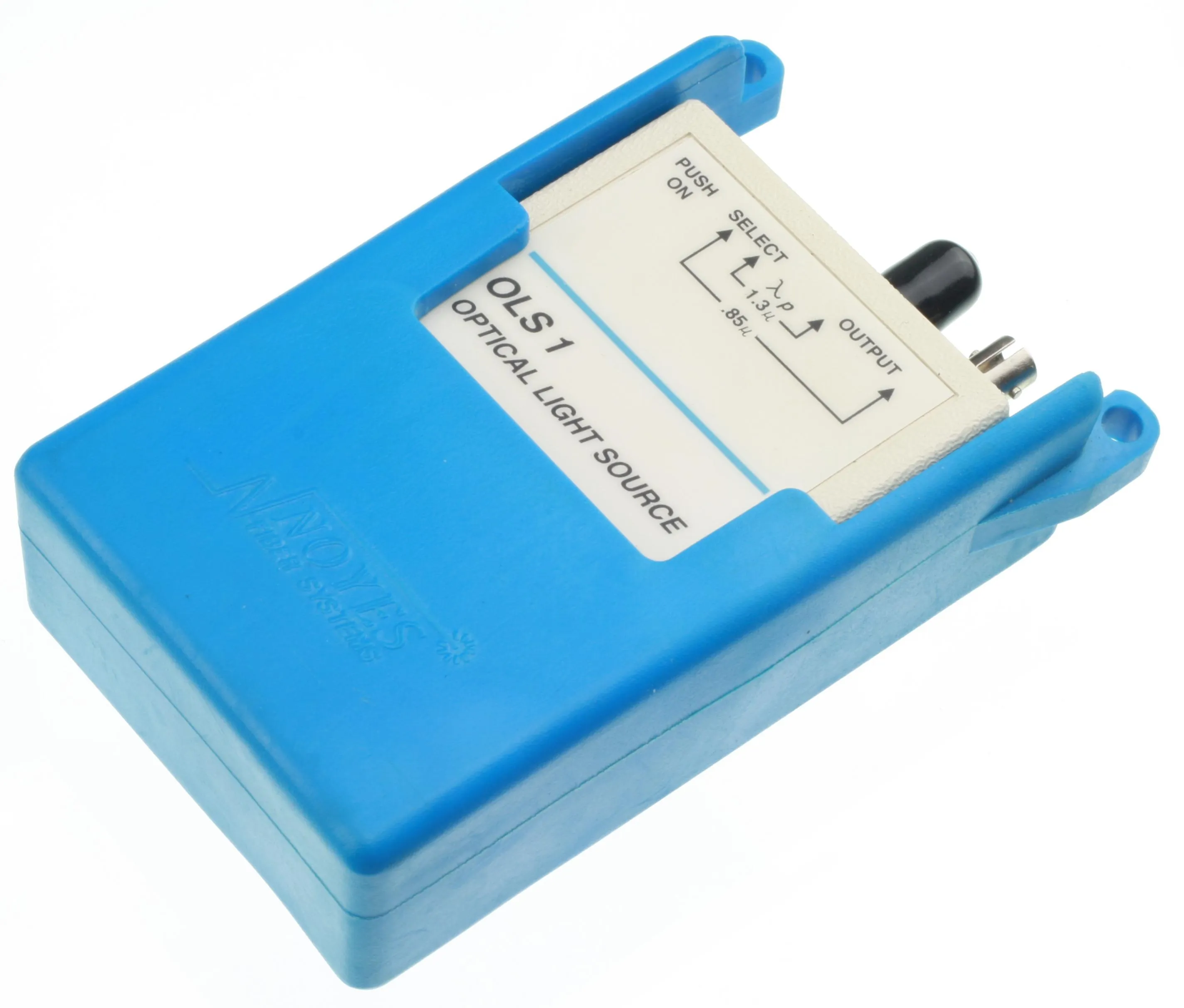

OLS 1 - Optical light source, BRUGT
Varenummer:
139-511
Varekode: OLS1-2 ST
1 stk.
på lager
Bestil nu for afsendelse i morgen
Brugt, men intakt
Features:
- Rugged, handheld, lightweight
- 850 and 1300 nm LED (multimode) light sources
- Certify 50 µm or 62.5µ multimode fiber links for any 850 or 1300 nm application, including Gigabit Ethernet (GBE) per TIA/EIA standards
- Long battery life
- N.I.S.T. traceable
Specifications:
| Output Ports | 2 |
| Output Wavelength | 850 + 35/-40 nm 1300 +50/-10 nm |
| Spectral Width (typ) (FWHM) | 40 nm 120 nm |
| Output Power | >-20 dBm >-20 dBm |
| Fiber Size | 62.5 µm |
| Output Connector | ST |
| Emitter Type | LED, Class I FDA 21 CFR 1040.10 and 1040.11, IEC 60825-1: 2007-03 |
| Stability | ±0.1 dB over 8 hours (after 5-minute warm-up) |
| GENERAL SPECIFICATIONS | |
| Power | Typical 60 hours with 9V battery, optional AC adapter |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -30°C to 60°C |
| Size (H x W x D) | 14.0 x 8.1 x 3.8 cm (5.5 x 3.2 x 1.5 in) |
| Weight | 0.29 kg (0.65 lb) |
