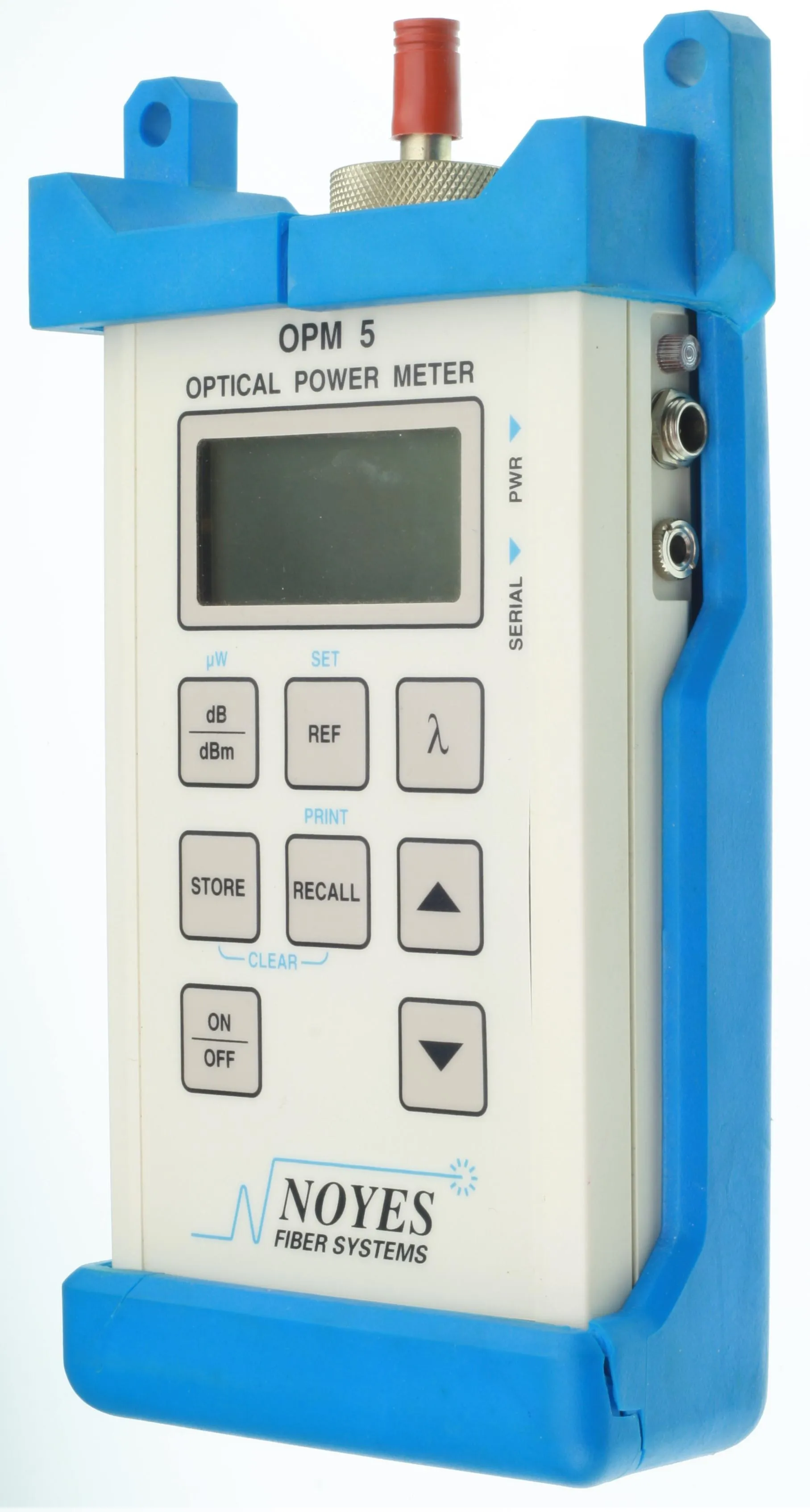

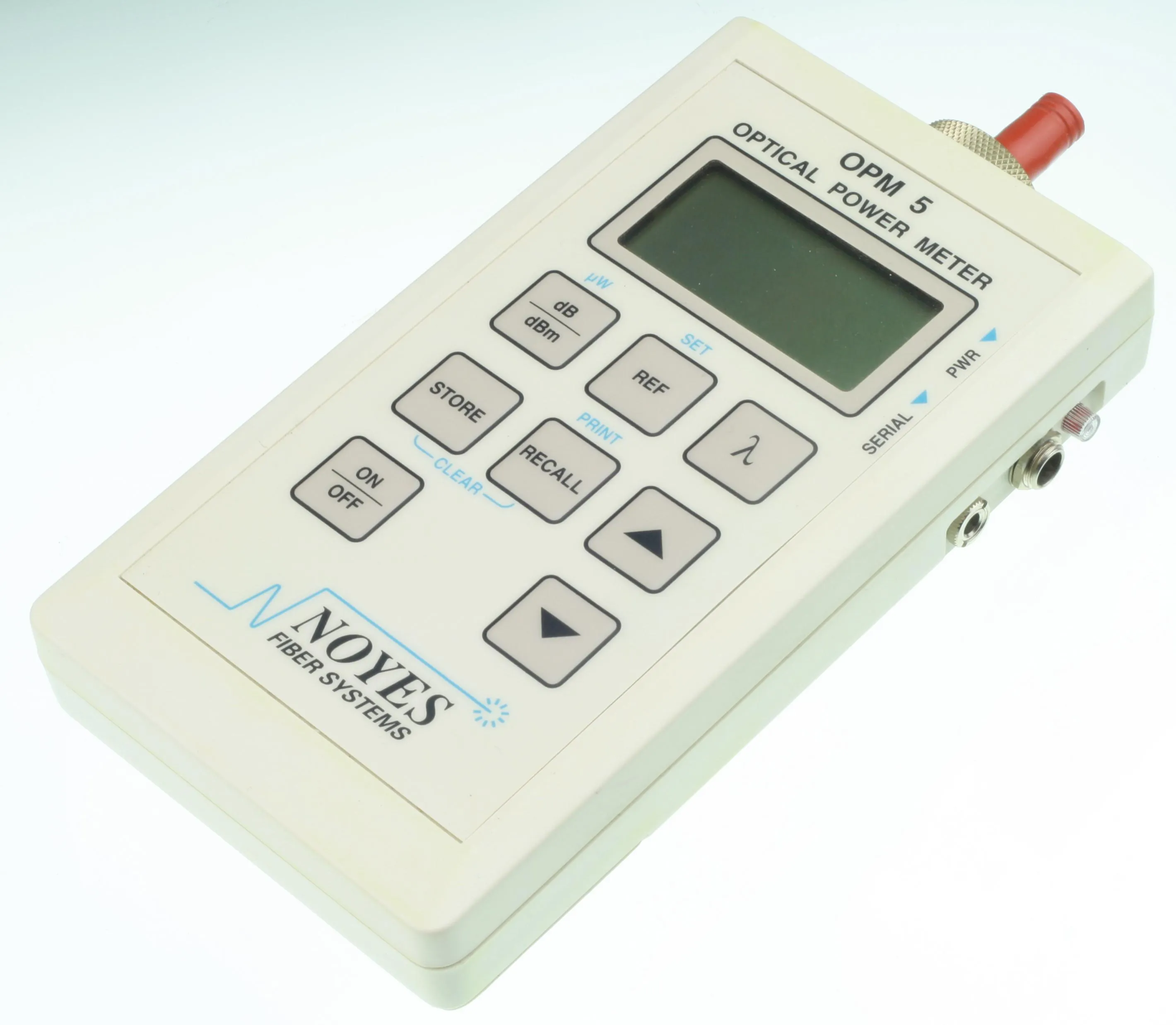

Optical power meter, BRUGT
Varenummer:
139-510
Varekode: OPM 5
1 stk.
på lager
Bestil nu for afsendelse i morgen
Brugt, men intakt
Specifications:
| Calibration Wavelength (nm) | 850, 1300, 1550nm |
| Tone Detection Range (dBm) | +6 to - 35 |
| Tone Detection Frequency (Hz) | 270 ± 13.5 1000 ± 50 2000 ± 300 |
| Detector Type | Germanium (Ge) |
| Display Range (dBm) | +6 to -60 dBm |
| Accuracy (@ 25°C & -10.0dBm) | ±0.25 dB |
| Resolution | 0.01 dB (.1 dB selectable) |
| Battery Life | >30 hrs. typical operation with 9V Alkaline |
| Adapter Caps | Order Separately (ST, SC, FC and others available) |
| Size (H x W x H) | 5.5 x 3.2 x 1.5 in (14.0 x 8.1 x 3.8 cm) |
| Weight | 0.56 lb (0.26 kg) |
| Operating Temp | 0° to 50° C |
| Storage Temp | 30° to 60° C |
| Relative Humidity | 0 to 95% (non-condensing) |
!
