NPN 550V 10A 150W TO-3
2N6672 Transistor (IC) Datasheet. Cross Reference Search. 2N6672 Equivalent
Type Designator: 2N6672
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 150
Maximum collector-base voltage |Ucb|, V: 550
Maximum collector-emitter voltage |Uce|, V: 350
Maximum emitter-base voltage |Ueb|, V: 8
Maximum collector current |Ic max|, A: 10
Maksimalna temperatura (Tj), °C: 200
Transition frequency (ft), MHz: 15
Collector capacitance (Cc), pF: 300
Forward current transfer ratio (hFE), min: 10
Noise Figure, dB: -

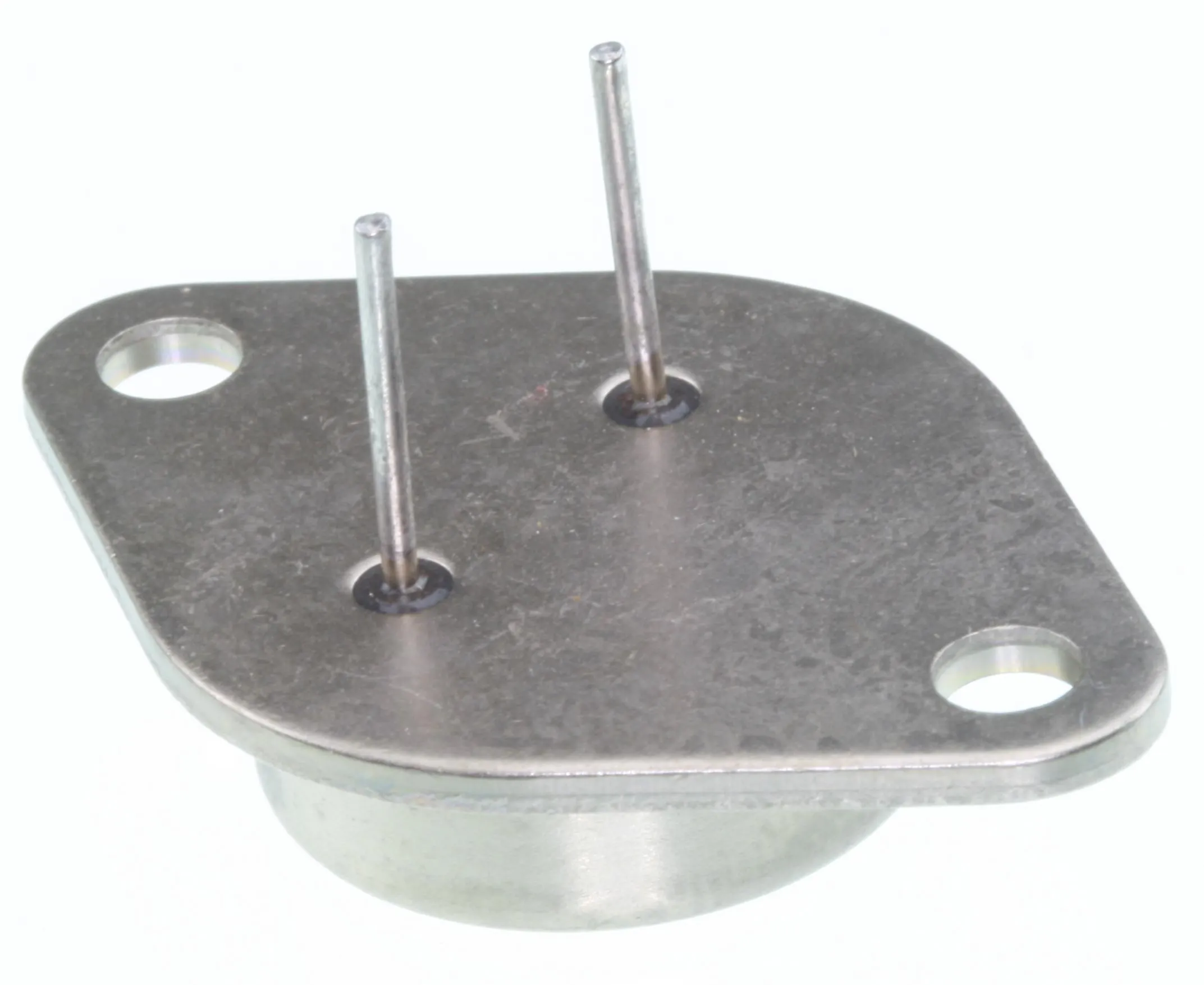

Package of 2N6672 transistor: TO3
