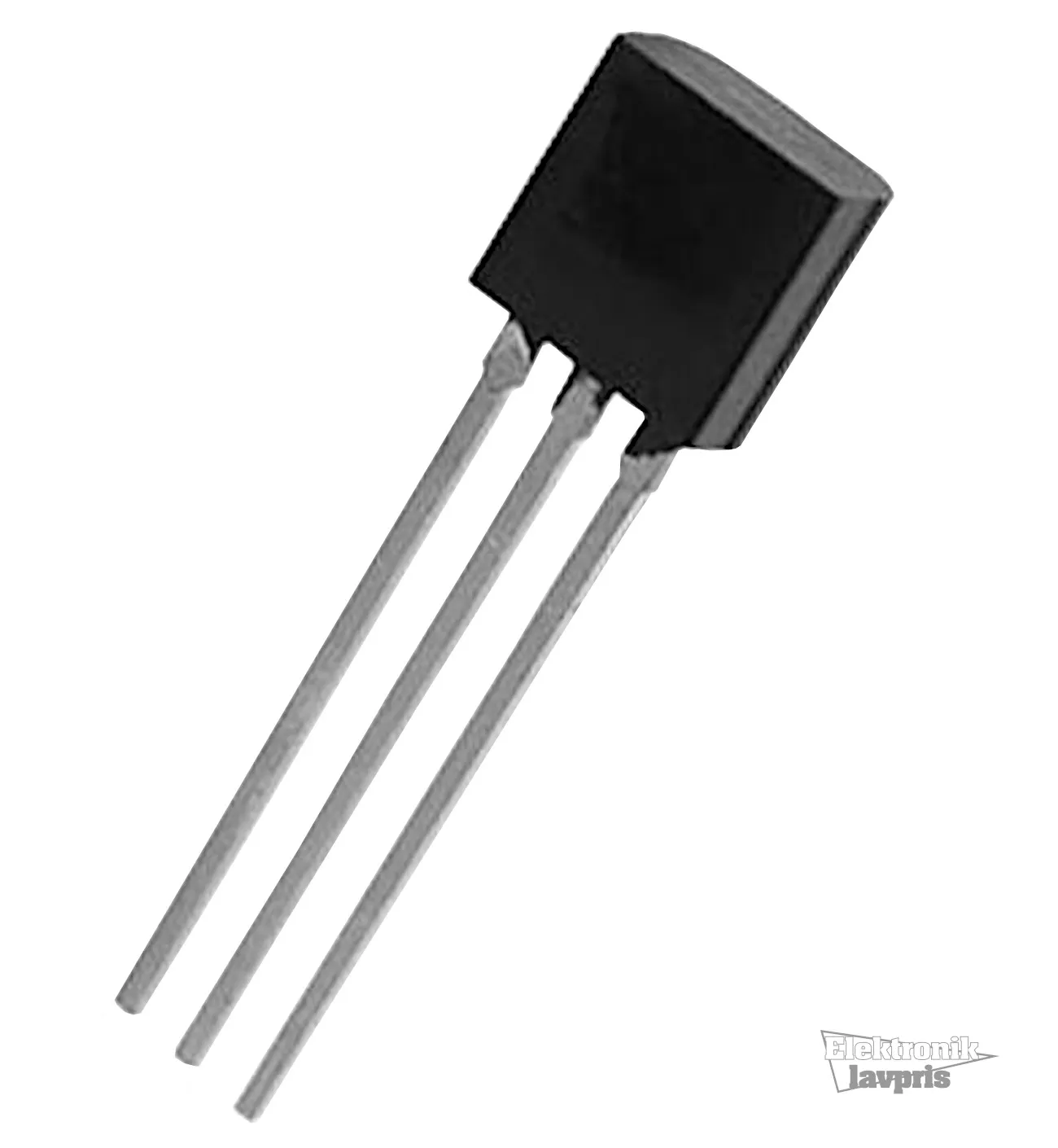

FET P-ch 30V 50mA 350mW TO-92
Fairchild Semiconductor, JFET
Mounting Style: Through Hole
Package/Case: TO-92
Transistor Polarity: P-Channel
Configuration: Single
Vgs - Gate-Source Breakdown Voltage: 30 V
Drain-Source Current at Vgs=0: 0.08 mA to 0.24 mA
Rds On - Drain-Source Resistance: 150 Ohms
Pd - Power Dissipation: 350 mW
Packaging: Bulk
Brand: Fairchild Semiconductor
Gate-Source Cut-off Voltage: 5 V
Operating Temperature Range: - 55 C to + 150 C
Unit Weight: 201 mg
- v/10 – Kr. 6,25
- v/100 – Kr. 5,00
