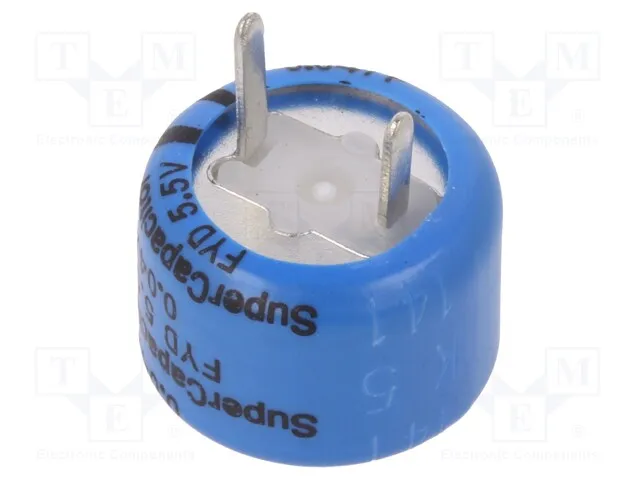

Gold Cap Capacitor 0,047F 5,5V P5,08 H
Varenummer:
139-348
Varekode: FYD0H473ZF
Vægt: 2 g
10 stk.
på lager
| Features |
| • Maximum operating voltage: 5,5 VDC • Temperature range: -25...+70°C • Maintenance free • Highly reliable against liquid leakage • Lead-free and RoHS compliant • Max. solder temperature: 245°C/5s |
 |
| Technical Specifications |
| Part Nr. | CN/C | CN/D | UOP | RESR | Imax. | W |
| [F] | [F] | [V DC] | [Ohm] | [mA] | [g] | |
| FYD0H473ZF | 0,047 | 0,070 | 5,5 | 220 | 0,071 | 1,7 |
| FYD0H104ZF | 0,10 | 0,14 | 5,5 | 100 | 0,15 | 2,4 |
| FYD0H224ZF | 0,22 | 0,35 | 5,5 | 120 | 0,33 | 4,3 |
| FYD0H474ZF | 0,47 | 0,75 | 5,5 | 65 | 0,71 | 6,0 |
| FYD0H105ZF | 1,0 | 1,6 | 5,5 | 35 | 1,5 | 11,0 |
| FYD0H225ZF | 2,2 | 3,3 | 5,5 | 35 | 3,3 | 22,9 |
| FYL0H103ZF | 0,01 | 0,013 | 5,5 | 300 | 0,015 | 0,9 |
| FYL0H223ZF | 0,022 | 0,028 | 5,5 | 200 | 0,033 | 1,0 |
| FYL0H473ZF | 0,047 | 0,061 | 5,5 | 200 | 0,071 | 1,2 |
| CN/C/D = Rated Capacitance, Carge/Discharge System, UOP = Max. Operating Voltage, RESR = Max. ESR (@1kHz), IMax. = Max. Current (@30 Min.), W = Weight | ||||||
|
||||||
| Dimensions |
| Part Nr. | Ø D | H | P | l | d1 | d2 |
| [mm] | ||||||
| FYD0H473ZF | 11,5 | 8,5 | 5,08 | 2,7 | 0,4 | 1,2 |
| FYD0H104ZF | 13,0 | 8,5 | 5,08 | 2,2 | 0,4 | 1,2 |
| FYD0H224ZF | 14,5 | 15,0 | 5,08 | 2,4 | 0,4 | 1,2 |
| FYD0H474ZF | 16,5 | 15,0 | 5,08 | 2,7 | 0,4 | 1,2 |
| FYD0H105ZF | 21,5 | 16,0 | 7,62 | 3,0 | 0,6 | 1,2 |
| FYD0H225ZF | 28,5 | 22,0 | 10,16 | 6,1 | 0,6 | 1,4 |
| FYL0H103ZF | 11,0 | 5,0 | 5,08 | 2,7 | 0,2 | 1,2 |
| FYL0H223ZF | 11,0 | 5,0 | 5,08 | 2,7 | 0,2 | 1,2 |
| FYL0H473ZF | 12,0 | 5,0 | 5,08 | 2,7 | 0,2 | 1,2 |
|
||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece Form of delivery: Bulk |
|
| Manufacturer |
 |
Inkl. moms
Kr. 48,75
- v/10 – Kr. 40,00
- v/25 – Kr. 35,00
- v/100 – Kr. 22,50
