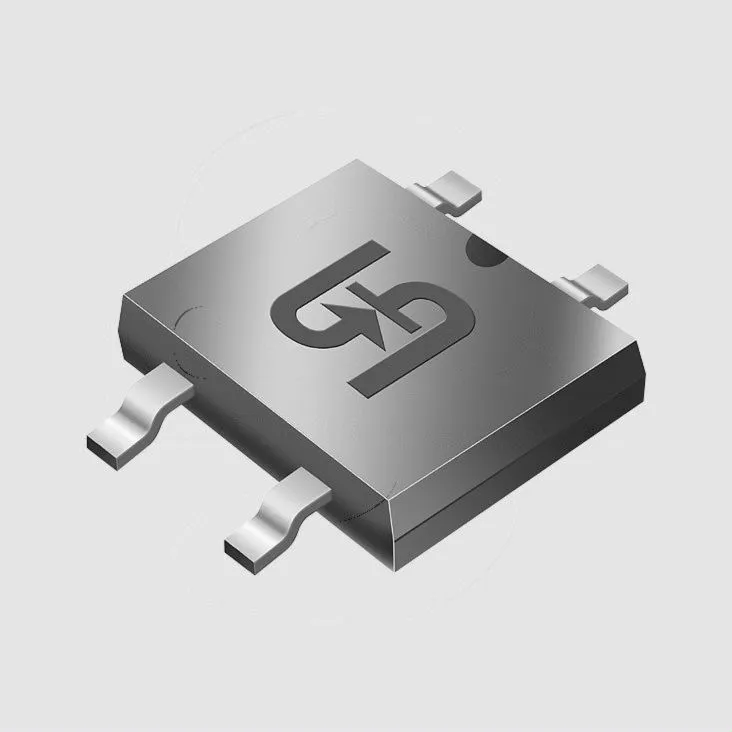

SMD Bridge Rect. 1A 140V(RMS)
Varenummer:
139-085
Varekode: SMDF103
Vægt: 2 g
760 stk.
på lager
Gruppe: V7774
TAIWAN SEMICONDUCTOR (TSC) SMD Bridge Rectifiers
1A
Glass
Passivated
Series: ABS_
Case: Thin SMD
|
Technical Specifications |
| • Leads solderable per MIL-STD-202, Meth. 208 • Max. solderability 260°C/10s • Operating temperature range -55...+150°C |
 |
| Part Nr. | URRM | URMS | UF | IF(AV) | IR | [V] | [V] | [V] | [A] | [µA] | ABS2 | 200 | 140 | 0,95 | 1,0 | 10 | ABS6 | 600 | 420 | 0,95 | 1,0 | 10 | ABS10 | 1000 | 700 | 0,95 | 1,0 | 10 | |||||||
| URRM = Max. Peak Recurrent Reverse Voltage, URMS = Max. RMS Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Rectified Current, IR = Max. Reverse Current | |||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 3000 pieces: 100 pieces on tape segment without leader tape and reel; orders of 3000 pieces: delivery on reel if requested. |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
