Trimmer Top Adjust P5/2,5 10R
Varenummer:
138-821
Varekode: FT63EPE010
250 stk.
på lager
Gruppe: C2316
COPAL Cermet Trimmers
Series:
FT63EP
Top Adjustment
Power: 0,5W
Shaft: Crossed Slot
Pitch: 5,0/2,5mm
Housing: 7,0x5,8mm
|
Features |
| • Excellent high temperature, high voltage and current
ratings • For professional applications |
 |
|
Electrical Specifications |
|
|||||||||||||||
| Taper: | Linear | Power Rating
(TU = 70°C): |
0,5W | Operating Voltage,
Max.: |
200V DC | Resistance
Tolerance: |
±10% | Residual Resistance,
Min.: |
2"font-family: Symbol;">W or 1%xRn | Contact Resistance,
Min.: |
3"font-family: Symbol;">W or 2%xRn | Temperature Range: | -55...+125°C | ||
| "20"> |
|||||||||||||||
|
Mechanical Specifications |
|
|||||||||||
| Rotation | Mechanical: | 260° | Electrical: | 220° | Stop Torque: | 50mNm | Operating Force: | 20mNm | |||
| "20"> |
|||||||||||
|

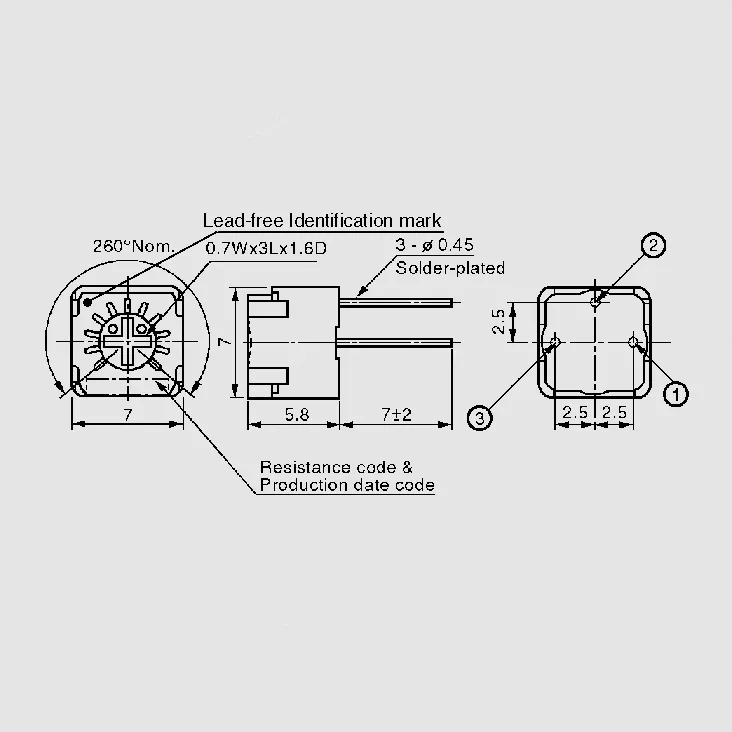

Dimensions |
|
|||||
| Length x Width x
Height: |
7,0x7,0x5,8mm | Pitch: | 5x2,5mm | ||
| "20"> |
|||||
| Labelling |
| Resistance and production date code |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 25 pieces |
|
| Manufacturer |
| Copal "http://www.nidec-copal-electronics.com" target= "_blank">http://www.nidec-copal-electronics.com |
|
