Trimmer Top Adjust P5/2,5 100R
Varenummer:
138-819
Varekode: FT63EPE100
3 stk.
på lager
Bestil nu for afsendelse i morgen
Gruppe: C2316
COPAL Cermet Trimmers
Series:
FT63EP
Top Adjustment
Power: 0,5W
Shaft: Crossed Slot
Pitch: 5,0/2,5mm
Housing: 7,0x5,8mm
|
Features |
| • Excellent high temperature, high voltage and current
ratings • For professional applications |
 |
|
Electrical Specifications |
|
|||||||||||||||
| Taper: | Linear | Power Rating (TU = 70°C): | 0,5W | Operating Voltage, Max.: | 200V DC | Resistance Tolerance: | ±10% | Residual Resistance, Min.: | 2W or 1%xRn | Contact Resistance, Min.: | 3W or 2%xRn | Temperature Range: | -55...+125°C | ||
|
|||||||||||||||
|
Mechanical Specifications |
|
|||||||||||
| Rotation | Mechanical: | 260° | Electrical: | 220° | Stop Torque: | 50mNm | Operating Force: | 20mNm | |||
|
|||||||||||
|

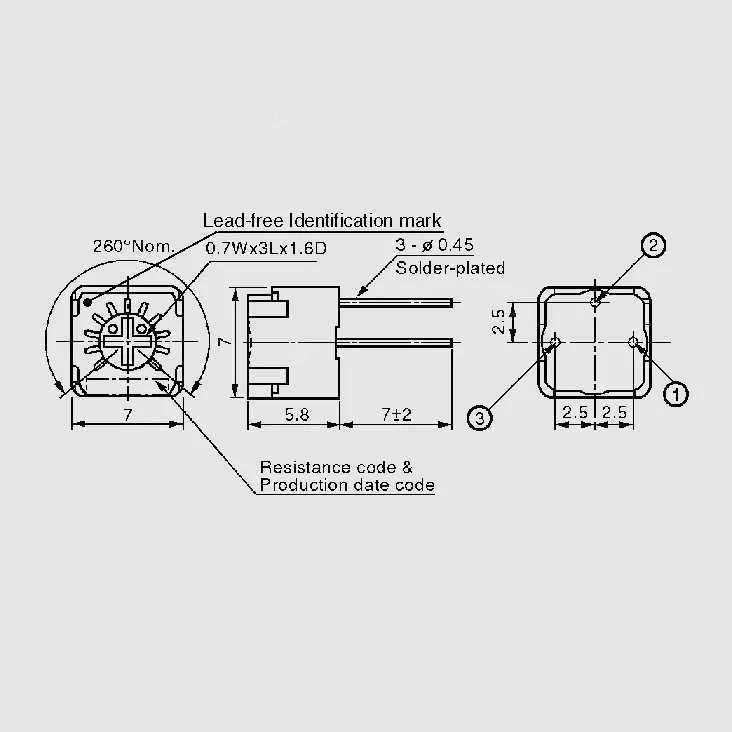

Dimensions |
|
|||||
| Length x Width x Height: | 7,0x7,0x5,8mm | Pitch: | 5x2,5mm | ||
|
|||||
| Labelling |
| Resistance and production date code |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 25 pieces |
|
| Manufacturer |
| Copal http://www.nidec-copal-electronics.com |
|
