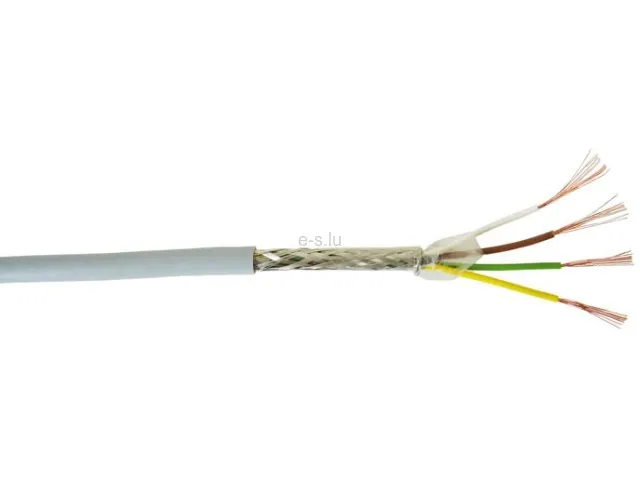

Multileder Skærmet 4x0.25 mm² Grå
Varenummer:
138-672
Varekode: LI-YCY 4X0,25 MM²
Vægt: 44 g
260 stk.
på lager
|
Manufacturer
|
HELUKABEL |
|
Type of wire
|
data transmission | ||||||||||||||||||||||||
|
Kind of wire
|
| LiY-CY |
|
Cable structure
|
4x0.25mm2 | |||||||||||
|
Core structure
|
stranded | |||||||||||
|
Kind of core
|
| Cu |
|
Number of cores
|
4 | |
|
Core section
Solid and stranded conductors construction according to AWG
|
| 0.25mm2 |
|
Core marking
|
colours without colour repetition | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Shield structure
|
shielded, tinned copper braid | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wire insulation material
|
| PVC |
|
Insulation colour
|
grey | |
|
Rated voltage
For products in the Cables and Wires category, a digit/digit number indicates:
Rated volage U0/U where: U0 = cable nominal voltage between the conductor and the metal covering or earth U = cable nominal voltage between the phase conductors |
| 500V |
|
Kind of material
|
no flame propagation | |
|
Operating temperature
|
-40...80°C | |
|
Resistance to
|
most of chemical compounds, most of oils | |
|
Flexibility class
|
5 | |
|
Cable external diameter
|
4.8mm | |
|
CPR standard
|
Eca | |
|
Earth core
|
none | |
|
Ground
|
tinned copper strand Ø0,4mm | |
|
Manufacturer series
|
TRONIC CY | |
|
Minimal wire bend radius
|
10xØ |
Inkl. moms
Kr. 19,48
- v/10 – Kr. 16,16
- v/50 – Kr. 12,00
Produktfiler
