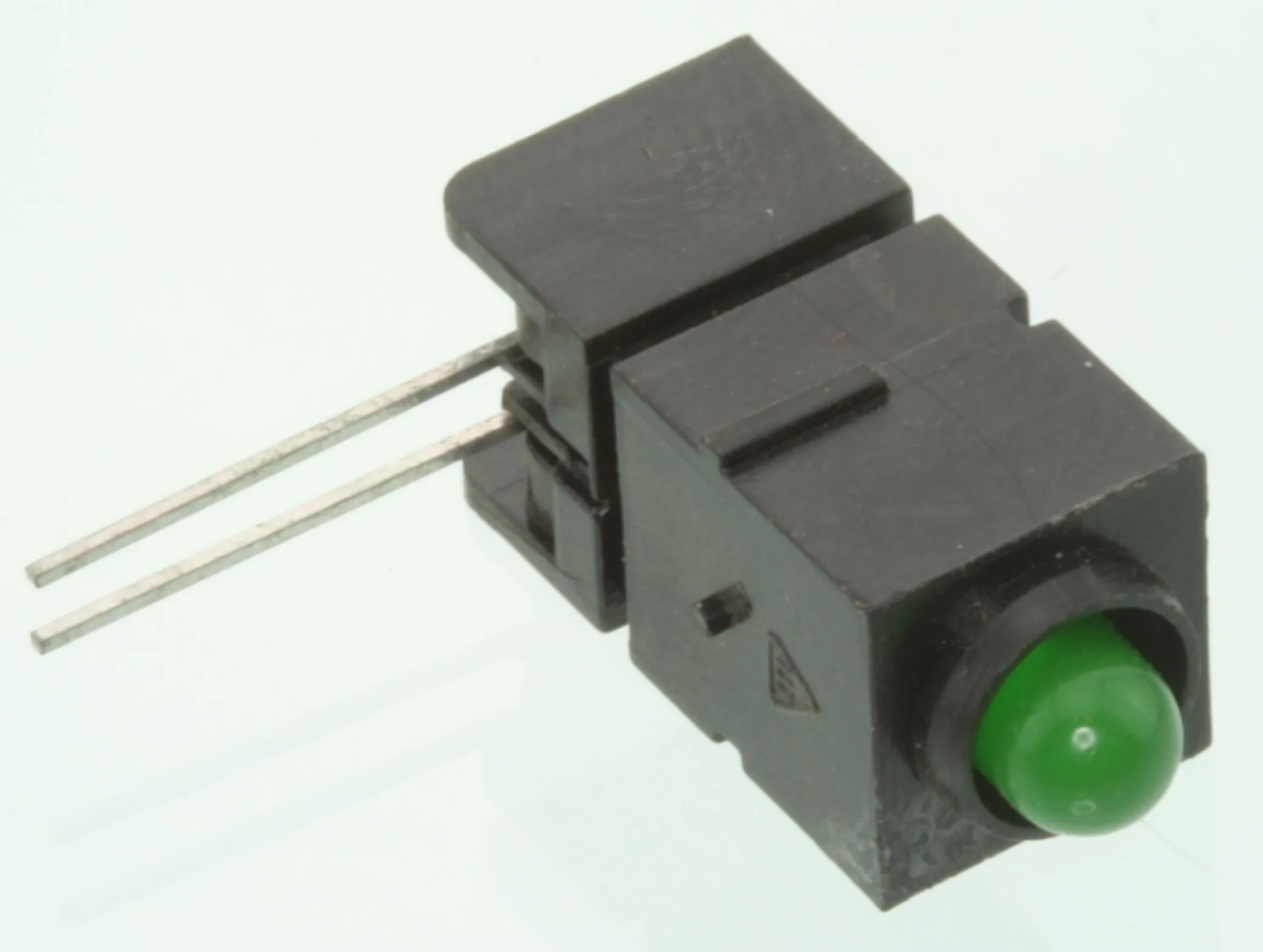

MENTOR PCB LED-fatning, 5mm GRØN, A8
Varenummer:
138-410
Varekode: MENTOR 1800.8032
18 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
| LED-Type | Emission Color |
Wave-length λ (nm) |
Lense Color | Forward Voltage VF (V) |
Luminous Intensity lV (mcd) |
at | Fwd. Current IF max |
Rev. Voltage VR |
2φ (50% lV) |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dominant | typ | max | min | typ | max | mA | (mA) | (V) | deg. | |||
| A8 | green | green diffused | 15 | 30 | 10 | 25 | 5 | 60 | ||||
| 568 | 2.2 | 2.5 | 20 | |||||||||
L = 3,2
A = 1,5
This component can also be equipped with 3-pole LEDs.
