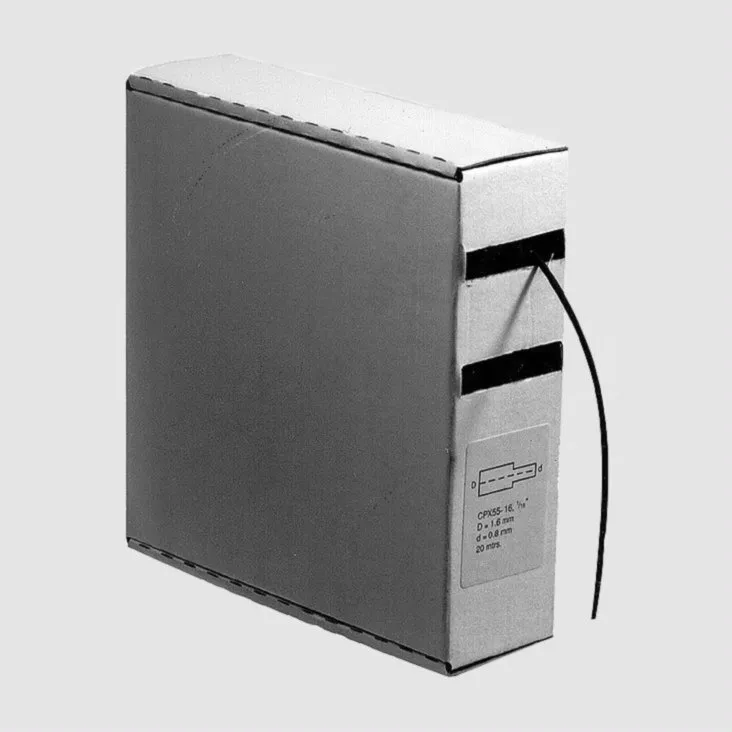

Krympeflex 2:1 9,5mm 10m Gul/Grøn
Varenummer:
138-371
Varekode: SBOX95GE/GN
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Gruppe: G8631
Polyolefin Heat-Shrinkable Tubing
Series: SBOX
Thin Walled in Dispenser Box
Tubing: 2:1
Colours: Black, Blue, Red, Green/Yellow
| SBOX32GG |
| Colours: Green/Yellow |
 |
| Features |
| • Radiation-interlaced polyolefin, very flexible • Two colour extruding shrink tubing • Flameproof |
|
| Technical Specifications |
|
|
| Continuous Operating Temperature: | -55...+135°C |
| Minimum Shrink Temperature: | 120°C |
| Dielectric Strength, Min.: | 20kV/mm |
| Flammability: | Flameproof |
|
|
| Approvals |
 Mil-1-23053/DEF.STAN 59-97 version 3/UL 114 |
|
| Dimensions |
| Part Nr. | D | d | W |
| [mm] | [mm] | [mm] | |
| SBOX32GG | 3,2 | 1,6 | 0,51 |
| D = Inner Dimensions Before Shrinkage, d = Inner Dimensions After Shrinkage, W = Wall Strength | |||
Inkl. moms
Kr. 139,00
- v/3 – Kr. 109,00
- v/10 – Kr. 89,00
Produktfiler
Krympeflex 2:1 9,5mm 10m Gul/Grøn
138-371
/ SBOX95GE/GN
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Gruppe: G8631
Polyolefin Heat-Shrinkable Tubing
Series: SBOX
Thin Walled in Dispenser Box
Tubing: 2:1
Colours: Black, Blue, Red, Green/Yellow
| SBOX32GG |
| Colours: Green/Yellow |
|
| Features |
| • Radiation-interlaced polyolefin, very flexible • Two colour extruding shrink tubing • Flameproof |
|
| Technical Specifications |
|
|
| Continuous Operating Temperature: | -55...+135°C |
| Minimum Shrink Temperature: | 120°C |
| Dielectric Strength, Min.: | 20kV/mm |
| Flammability: | Flameproof |
|
|
| Approvals |
| Mil-1-23053/DEF.STAN 59-97 version 3/UL 114 |
|
| Dimensions |
| Part Nr. | D | d | W |
| [mm] | [mm] | [mm] | |
| SBOX32GG | 3,2 | 1,6 | 0,51 |
| D = Inner Dimensions Before Shrinkage, d = Inner Dimensions After Shrinkage, W = Wall Strength | |||
