IDC Connector 34-Pole RM2.00
Varenummer:
138-152
Varekode: 89361-734LF
0 stk.
på lager
|
Technical Specifications |
 |
|||||||||||||||
| Insulation Shell: | Thermoplastic,
UL94V-0 |
Contact Material: | Phosphor-Bronze | Contact Surface: | Gold-plated | Rated Current: | 1,5A | Rated Voltage: |
150VRMS/150V DC |
Dielectric Strength
(1Min.): |
500V AC | Temperature Range: | -40...+105°C | ||
| "20"> |
|||||||||||||||
|

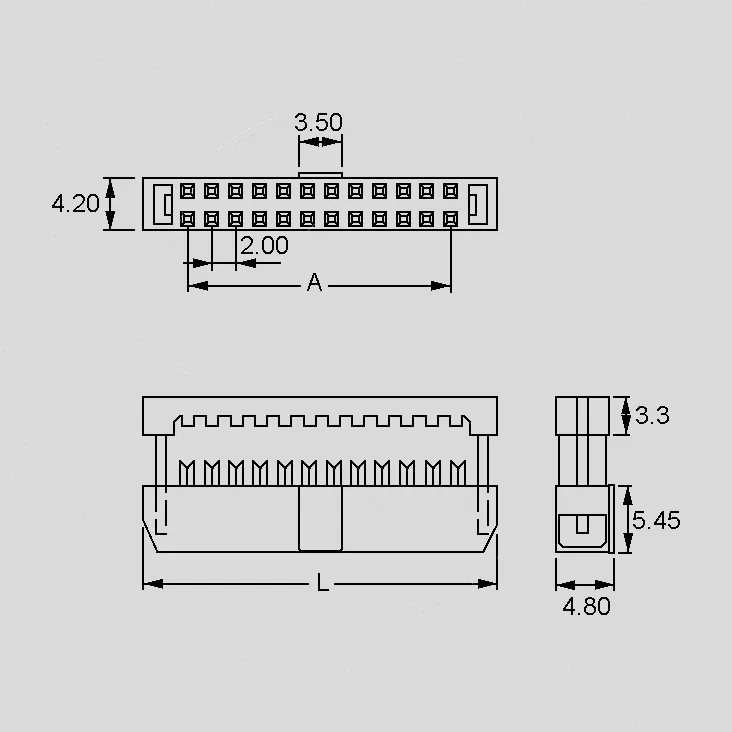

Dimensions |
|
Part Nr. |
Nr. of Poles |
A |
L |
� |
� |
� |
[mm] |
[mm] |
� |
MPF10G | 10 | 8,00 | 15,30 |
� |
MPF20G | 20 | 18,00 | 25,60 |
� |
MPF26G | 26 | 24,00 | 31,60 |
� |
MPF40G | 40 | 38,00 | 45,60 |
� |
MPF44G | 44 | 42,00 | 49,60 |
� |
|||||
| "20"> |
|||||||||||||||||||||||||||||||||||||||
| Note |
| For suitable IDC crimping fixtures, please see product group
"warengruppe?OpenDocument&wg=T4651&refDoc=CMSB15F221F103AF4F4C1256D6E004588CA">
T4651 in our red "Components and Devices" catalogue. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 border="0"> |
| "_blank">http://www.mpegarry.de |
|
