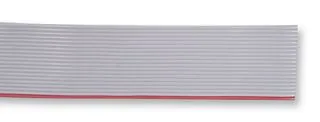

Flat Cable Grey 12 Wire Pitch: 0,635 NB!! =3609/12
Varenummer:
138-026
Varekode: JFCR30L-12G063
23 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
- RIBBON CABLE, 12WAY, 30.5M
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- No. of Conductors: 12
- Pitch Spacing: 0.635mm
- Conductor Size AWG: 30AWG
- Conductor Area CSA: 0.049mm²
- Voltage Rating: 150V
- Approval Bodies: UL
- Approval Category: UL 2678
- Cable Type: Flat (Ribbon)
- Colour: Grey
- Conductor Make-up: 1/0.254mm
- Conductor Material: Copper
- Conductor Size AWG: 30AWG
- Impedance: 80ohm
- Jacket Material: PVC (Polyvinyl Chloride)
- Jacket Material: PVC
- No. of Cores: 12
- No. of Strands x Strand Size: 1 x 0.254mm
- Operating Temperature Max: 105°C
- Operating Temperature Min: -20°C
- Voltage Rating V AC: 150V
- Wire Size: 30AWG
Inkl. moms
Kr. 31,25
- v/10 – Kr. 30,00
- v/30 – Kr. 27,50
