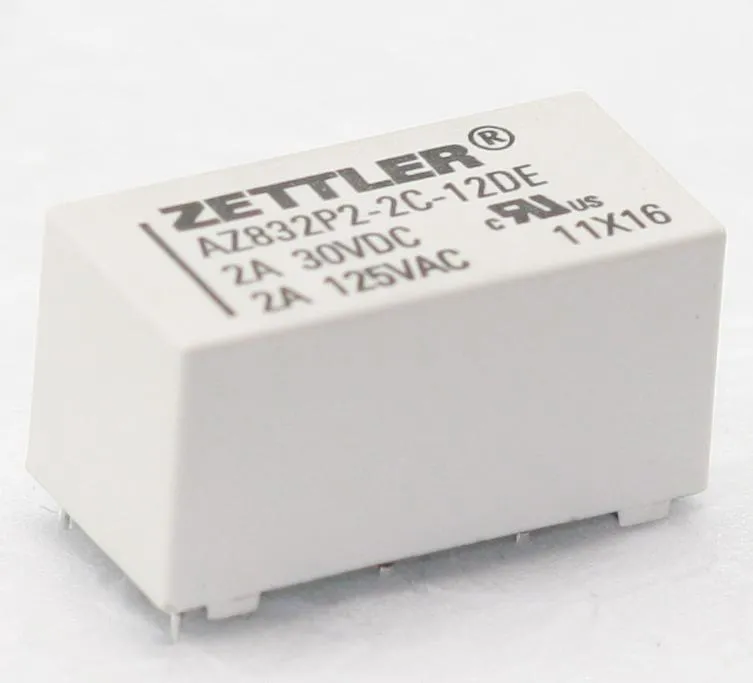

• Low profile DIP package
• AZ832_: high sensitivity, 96mW pickup
• AZ832P_: high sensitivity, 42mW pickup
• Housing: 20,2x10x10,65mm
• Standard PC 2,54mm grid terminal spacing
• Fits standard 16 pin IC socket
• Epoxy sealed for automatic wave soldering and cleaning
• Meets FCC Part 68.302 1500V lightning surge
• Meets FCC Part 68.304 1000V dielectric |
 |
|
| |
|
| Contact: |
DPDT |
| Contact Material: |
Ag, Au-plated against PdAg |
| Rated Current: |
2A |
| Max. Switching Voltage |
| AZ8322P_: |
250V AC / 220V DC |
| AZ832_: |
250V AC / 250V DC |
| Max. Switching Power |
| AZ8322P_: |
125VA / 90W |
| AZ832_: |
250VA / 90W |
| Operate/Release Time |
| AZ8322P_: |
3/3ms |
| AZ832_: |
3/2ms |
| Testing Voltage (FCC) |
| Coil/Contact: |
1500VRMS |
| Contact/Contact: |
1000VRMS |
| Open Contacs: |
1000VRMS |
| Lifetime |
| Mechanical, Min.: |
2x107 Operations |
| Electrical, Min. (2A / 30V AC): |
1x105 Operations |
| Operating Temperature: |
-40...+85°C |
| Max. Solder Temperature: |
270°C (5s) |
| Weight Approx.: |
5g |
|
| |
|
|
|
|
|
| Part Nr. |
UN |
UMin. |
UMax. |
PN |
RN |
| |
[V DC] |
[V DC] |
[V DC] |
[mW] |
[Ohm] |
| AZ832P2-2C-3DE |
3 |
2,25 |
6,4 |
200 |
45 |
| AZ832P2-2C-5DE |
5 |
3,75 |
10,6 |
200 |
125 |
| AZ832P2-2C-12DE |
12 |
9,0 |
25,5 |
200 |
720 |
| AZ832P2-2C-24DE |
24 |
18,0 |
18,0 |
300 |
2040 |
| AZ832-2C-12DE |
12 |
9,6 |
25,5 |
282 |
720 |
| AZ832-2C-24DE |
24 |
19,2 |
50,9 |
200 |
2820 |
| AZ832-2C-12DEA |
12 |
9,6 |
25,5 |
200 |
720 |
| AZ832-2C-24DEA |
24 |
19,2 |
50,9 |
200 |
2820 |
| AZ832-2C-12DSE |
12 |
9,6 |
29,0 |
150 |
960 |
| AZ832-2C-24DSE |
24 |
19,2 |
57,0 |
150 |
2160 |
| UN = Rated Voltage, UMin. = Minimum Operating Voltage, UMax. = Maximum Operating Voltage, PN = Rated Power, RN = Coil Resistance; Rated Value ±10%; All Specifications Measured at 20°C |
|
| Approvals |
  (File No. E43203) |
|
|
