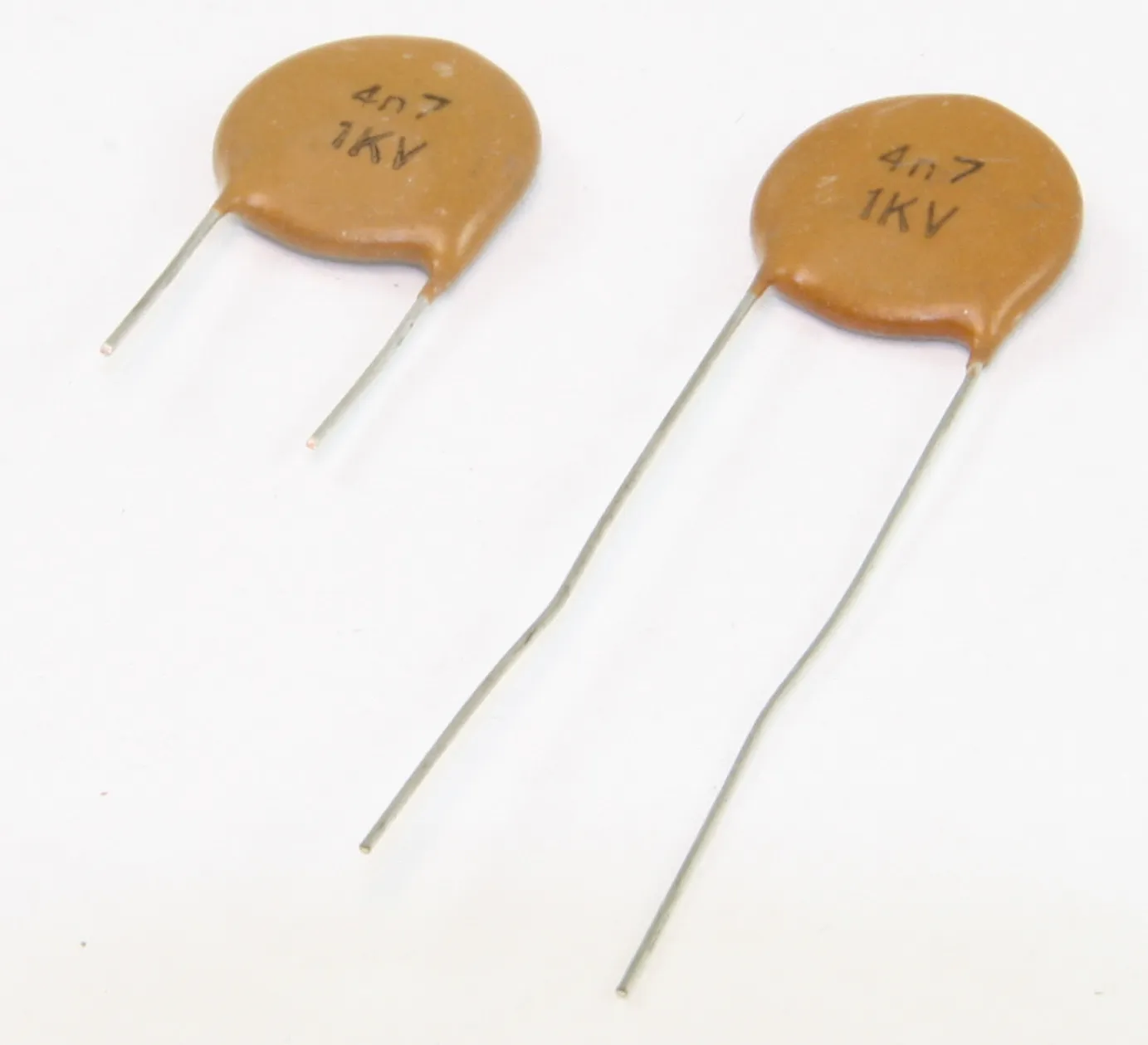

Keramisk kondensator 4.7nF, 1KV 1000V Z5U
Varenummer:
137-611
Varekode: KENF4,7-1KV
Vægt: 0 g
390 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 16500 stk. kan skaffes lørdag d. 31/10
Specifikationer
| Materiale | Z5U |
|---|---|
| Produkt | Kondensator |
| Kondensator-type | Keramisk |
| Tolerance | ±20 % |
| Spænding, max. | 1 000 V |
| Benafstand | 9.5 mm |
| Kapacitans | 4.7 nF |
Technical Specifications
 |
|
| Rated Voltage: | 1kV/2kV |
| Pitch: | 5,08/7,5/10mm ±1,0mm |
| Insulation Resistance, Min., Type 1: | 10MOhm |
| Insulation Resistance, Min., Type 2 | |
| 20nF: | 10MOhm |
| 20nF...100nF: | 7,5MOhm |
| Insulation Resistance, Min., Type 3 | |
| 16V: | 100MOhm |
| 25V, 50V: | 1,0MOhm |
|
|
| Part Nr. | C | Tolerance | Mat. | D |
| [%] | [mm] | |||
| KEPF033-1KVR5 | 33pF | ±5 | CH | 6,5 |
| KEPF047-1KVR5 | 47pF | ±5 | CH | 7,5 |
| KENF001-1KVR5 | 1nF | ±10 | Y5P | 5,5 |
| KENF002.2-1KVR5 | 2,2nF | ±20 | Z5U | 6,5 |
| KENF002.2-1KVR7 | 2,2nF | ±20 | Z5U | 6,5 |
| KENF003.3-1KVR5 | 3,3nF | ±20 | Z5U | 8,5 |
| KENF003.3-1KVR7 | 3,3nF | ±20 | Z5U | 8,5 |
| KENF004.7-1KVR5 | 4,7nF | ±20 | Z5U | 9,5 |
| KENF004.7-1KVR7 | 4,7nF | ±20 | Z5U | 9,0 |
| KENF010-1KVR7 | 10nF | ±20 | Z5U | 12,5 |
| KENF010-1KVR10 | 10nF | ±20 | Z5U | 12,5 |
| KENF022-1KVR7 | 22nF | ±20 | Z5U | 16,5 |
| KENF022-1KVR10 | 22nF | ±20 | Z5U | 16,5 |
| KEPF100-2KV | 100pF | ±10 | Y5P | 5,5 |
| KEPF220-2KV | 220pF | ±10 | Y5P | 5,5 |
| KEPF330-2KV | 330pF | ±10 | Y5P | 5,5 |
| KEPF470-2KV | 470pF | ±10 | Y5P | 5,5 |
| KEPF680-2KV | 680pF | ±10 | Y5P | 6,5 |
| KENF001-2KV | 1nF | ±10 | Y5P | 6,5 |
| KENF002.2-2KV | 2,2nF | ±10 | Y5P | 9,5 |
| C = Rated Capacitance, Mat. = Type of Ceramic, D = Disc Diameter | ||||
Inkl. moms
v/10
Kr. 2,50
- v/100 – Kr. 1,25
- v/1000 – Kr. 0,62
