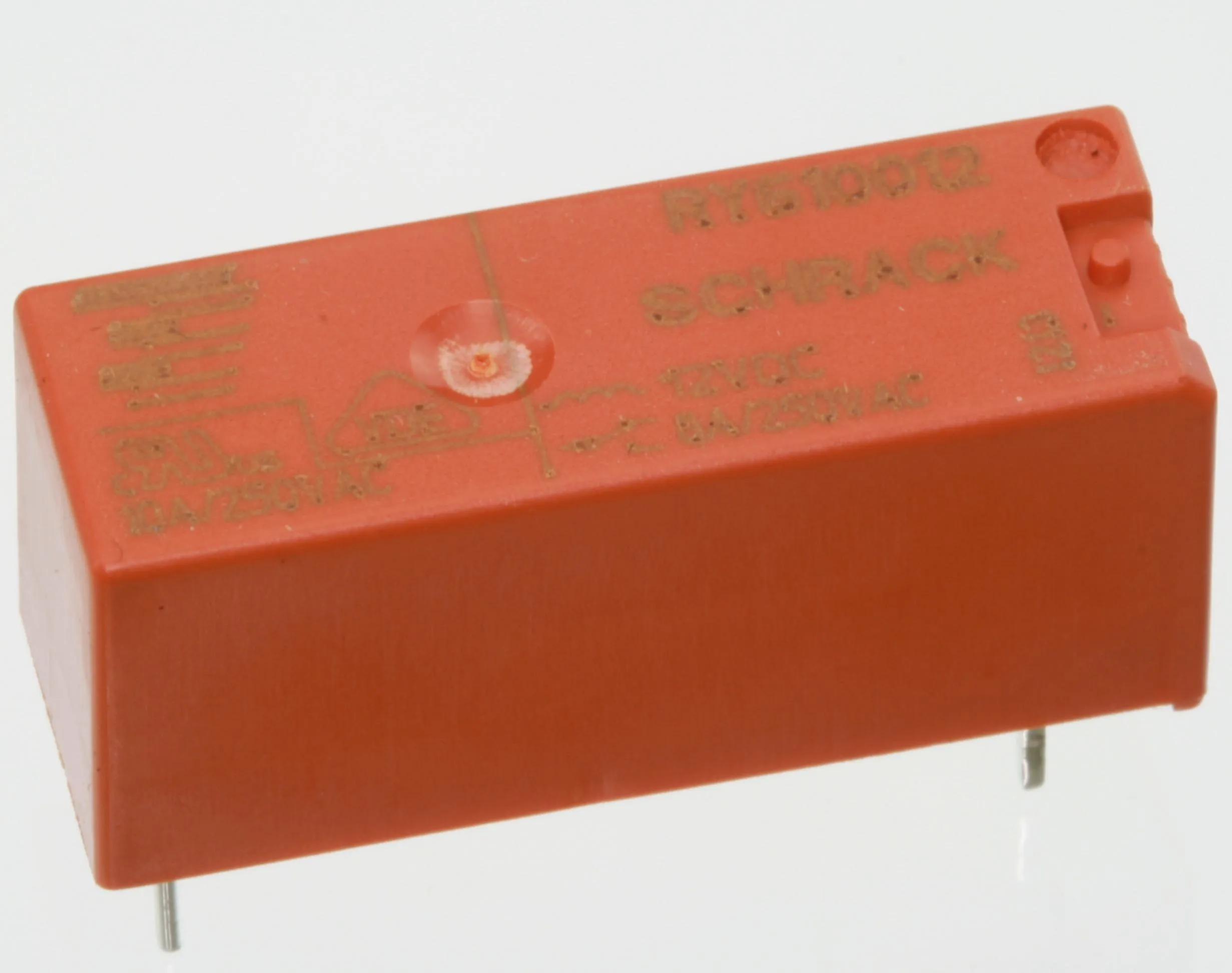

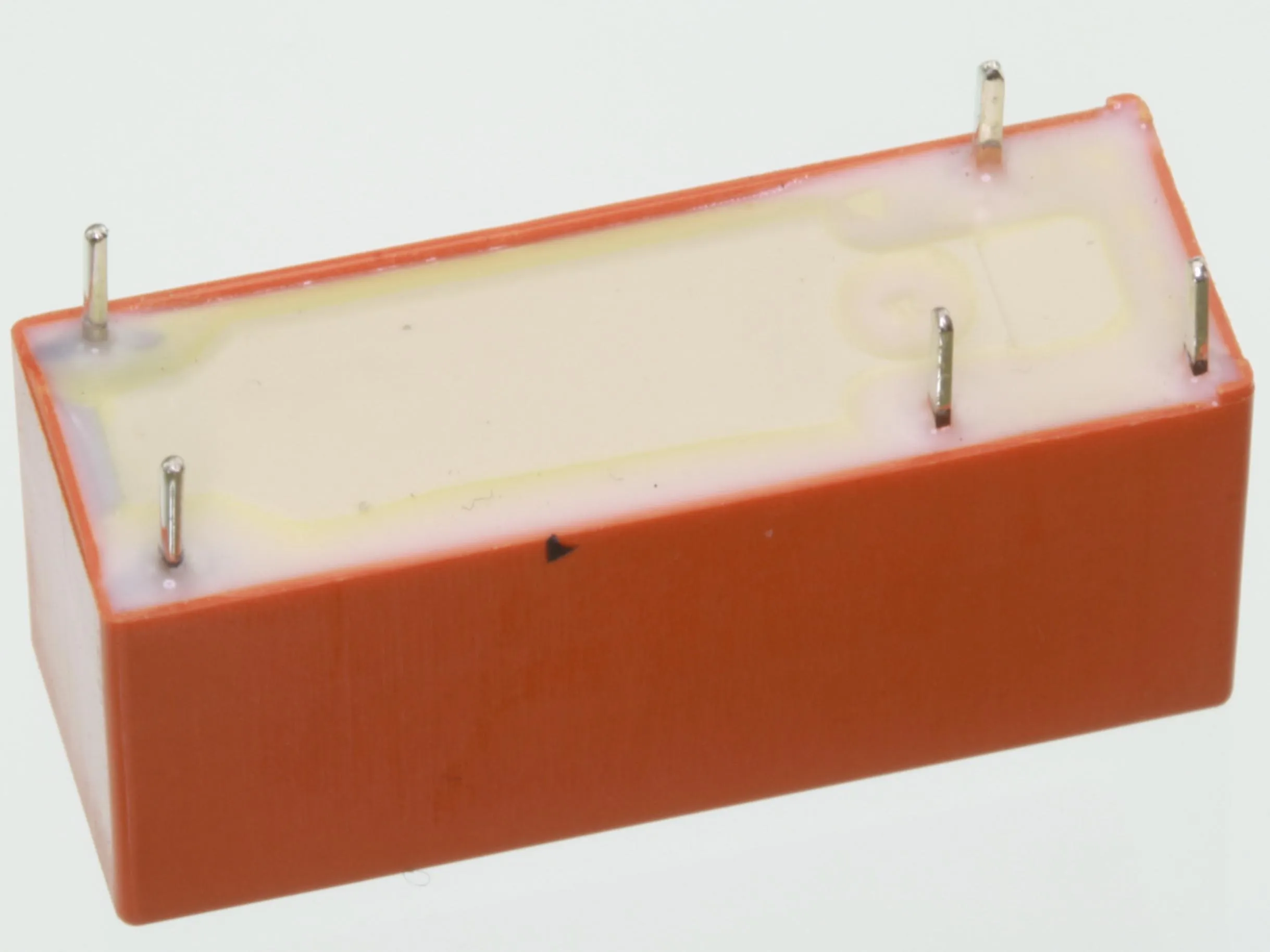

PrintRelæ 12VDC/250mW/620R/1xSKIFTE
Varenummer:
136-901
Varekode: RY611012
Vægt: 8 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem mandag d. 9/11
|
Manufacturer
|
TE Connectivity | |
|
Type of relay
|
electromagnetic | |
|
Contacts configuration
 |
SPDT | |
|
Rated coil voltage
|
12V DC | |
|
Contact current max.
|
8A | |
|
AC contacts rating @R(at resistive load)
at resistive load
|
8A / 250V AC | |
|
DC contacts rating @R(at resistive load)
at resistive load
|
8A / 30V DC | |
|
Relay series
|
RYII | |
|
Switched voltage
|
max. 300V DC, max. 400V AC | |
|
Relay variant
|
miniature | |
|
Mounting
|
PCB | |
|
Coil resistance
|
620Ω | |
|
Operate time
|
9ms | |
|
Body dimensions
|
28.5x10.1x12.3mm | |
|
Release time
|
5ms | |
|
Coil power consumption
|
220mW | |
|
IP rating
|
IP67 | |
|
Mechanical durability
|
30000000 cycles | |
|
Operating temperature
|
-40...85°C | |
|
Switching capacity
|
2kVA | |
|
Contact material
|
AgNi | |
|
Terminal pitch
|
3.2mm | |
|
Coil current
|
19.3mA |
Produktfiler
