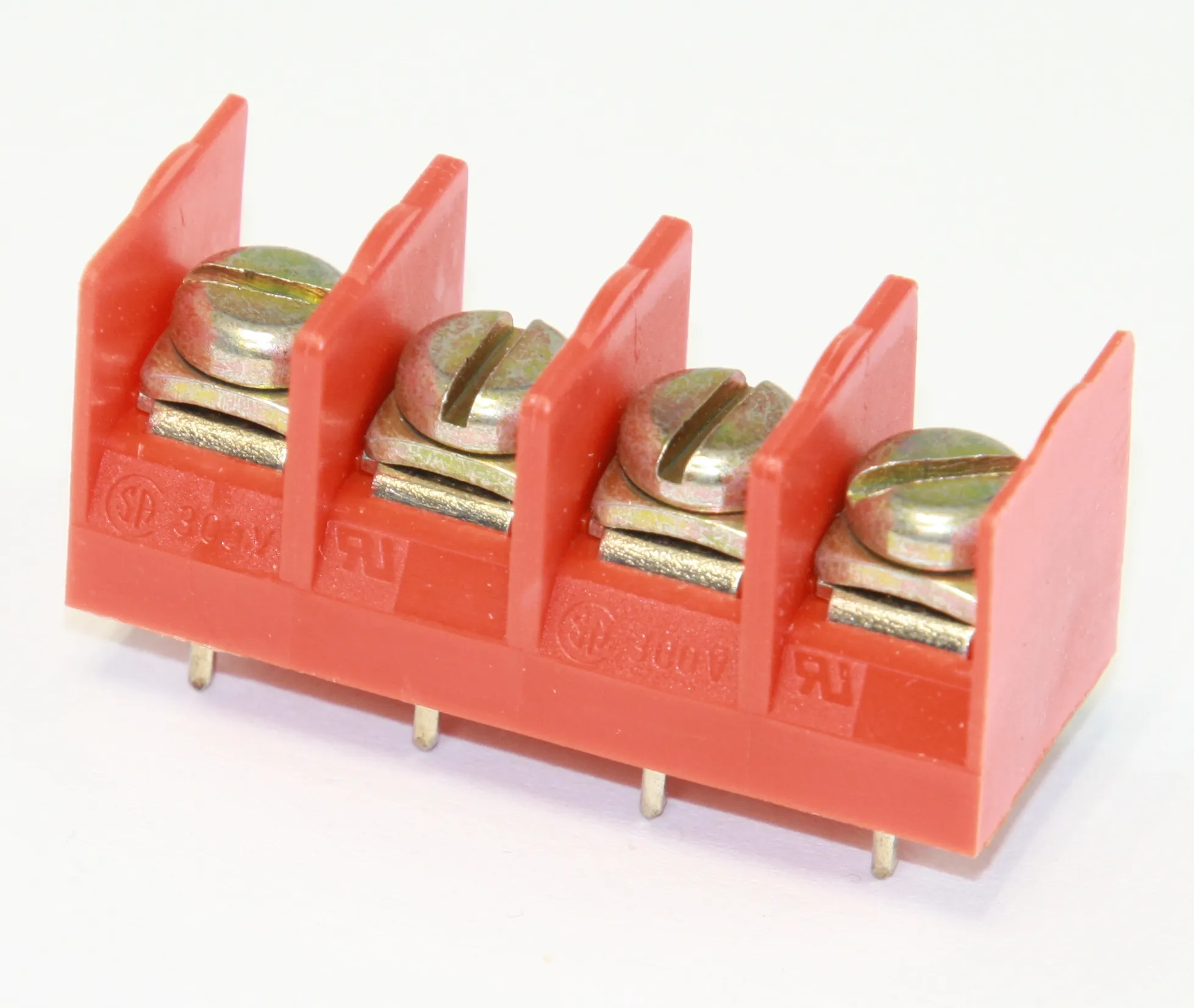

Klemrække 4-pol m/elevatortrykplade WECO
Varenummer:
136-754
Varekode: 983/D/04
Vægt: 23 g
36 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Klemrække 4-pol m/elevatortrykplade
FARVE: RØD
ANTAL BEN pr. POL: 2
For kabel: 0,5 - 2,5#
Max: 700V 24A
Weco nr: 20.873.804
Mål: 40,0 x 16,0 x 16,5 mm.
Benafstand: 10,00 mm.
TECHNICAL INFORMATION
Description
Barrier strip connector
Allows two wires of the same size per contact from either direction
Block is offered with or without back barrier (see How to Order (Z) for more detail).
Standard product comes with a slotted screw.
(For combi/pozidriv screw, please see the options -CSS in the How to Order)
Technical Data
Center to Center Spacing: 10.000 mm (0.394 in)
2
2
Nominal Cross Section: 2.5 mm
(3875 mils)
Wire Stripping Length: 8.500 mm (0.335 in)
Recommended Hole Diameter in PC Board: 1.300 mm (0.051 in)
Bill of Materials
Molding : Polyamide, Self extinguishing UL 94, V-0
Color : Grey
Temperature limits :
Short Time : 140°C (284°F)
Continuous : 105°C (221°F)
Low Limit : -40°C (-40°F)
Comparative Tracking Index : CTI ? 600 V
Oxygen Index Rating : 25 %
Terminal Body: Tin plated copper alloy
PCB Pin: Tin plated copper alloy 0.8 x 1.0 mm (0.03 x 0.04 in.)
Screw and Washer: Zinc plated blue passivated, steel substrate M4
Inkl. moms
Kr. 18,75
- v/10 – Kr. 15,00
- v/50 – Kr. 12,50
