Cat6A netværkskabel, AWG26/7 S/FTP, 50m Grå Stranded
Varenummer:
135-995
Varekode: W96093
Vægt: 1576 g
2 stk.
på lager
CAT 6a network cable, S/FTP (PiMF), grey
CU, AWG 26/7 (stranded), LSZH
- non-terminated flexible data-/patchcable for indoor using

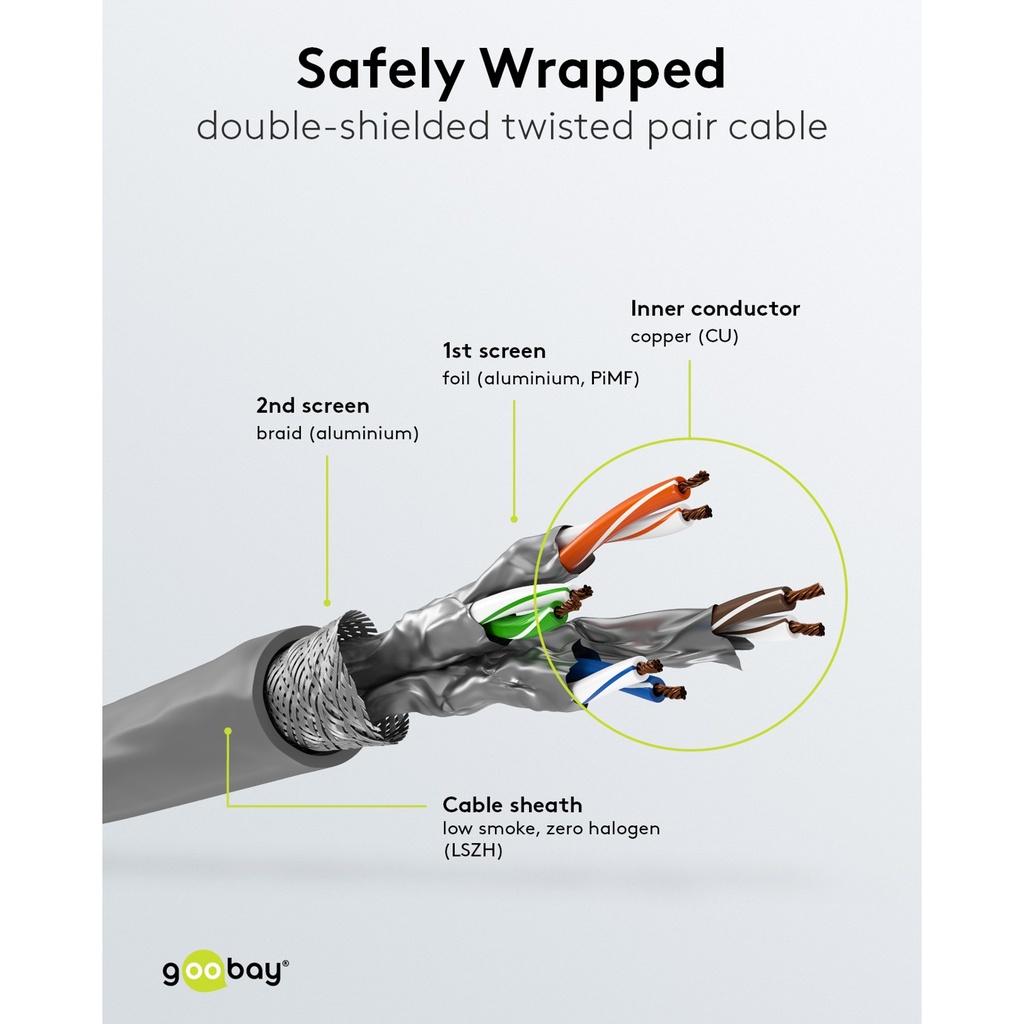

- double shielded twisted-pair LAN cable
- pairs screening: PIMF (pairs in metal foil) + outer shield: braiding
- This product is not approved for permanent installation in buildings.
Technical specifications
- Cable
- Cable type round cable
- Specification CAT 6a
- Shielding class S/FTP (PiMF)
- AWG26/7 (stranded)
- Cable sheath diameter (approx.) 6.3 mm
- Inner conductor material CU (copper)
- Material cable sheath LSZH
- Cable length 50 m
- Meter scaling yes
- Number of shieldings 2 x
- Type 1, shielding foil (alu) PiMF
- Type 2, shielding braid (aluminum)
- LSZH compliant yes
- Signal transmission
- max. bandwidth 500 MHz
- Impedance 100 Ω
- General
- Consumption Unit 1 pc. coil
- Color grey
-
