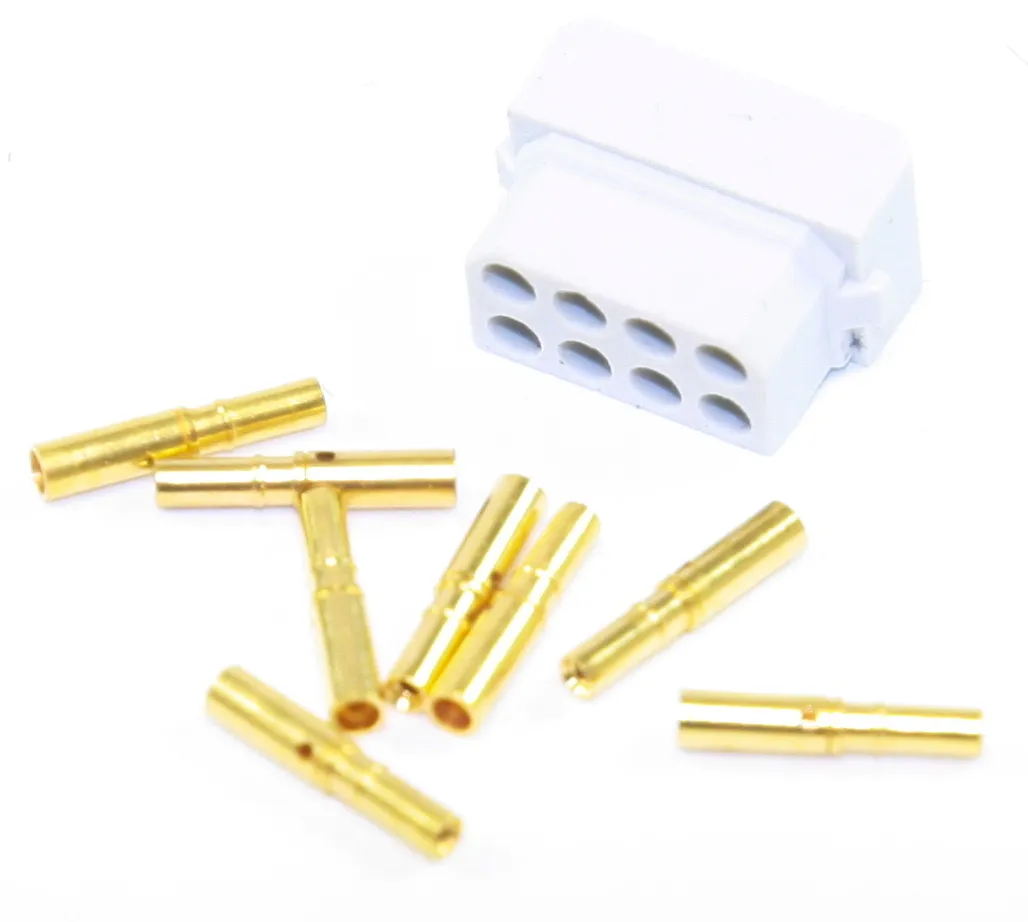

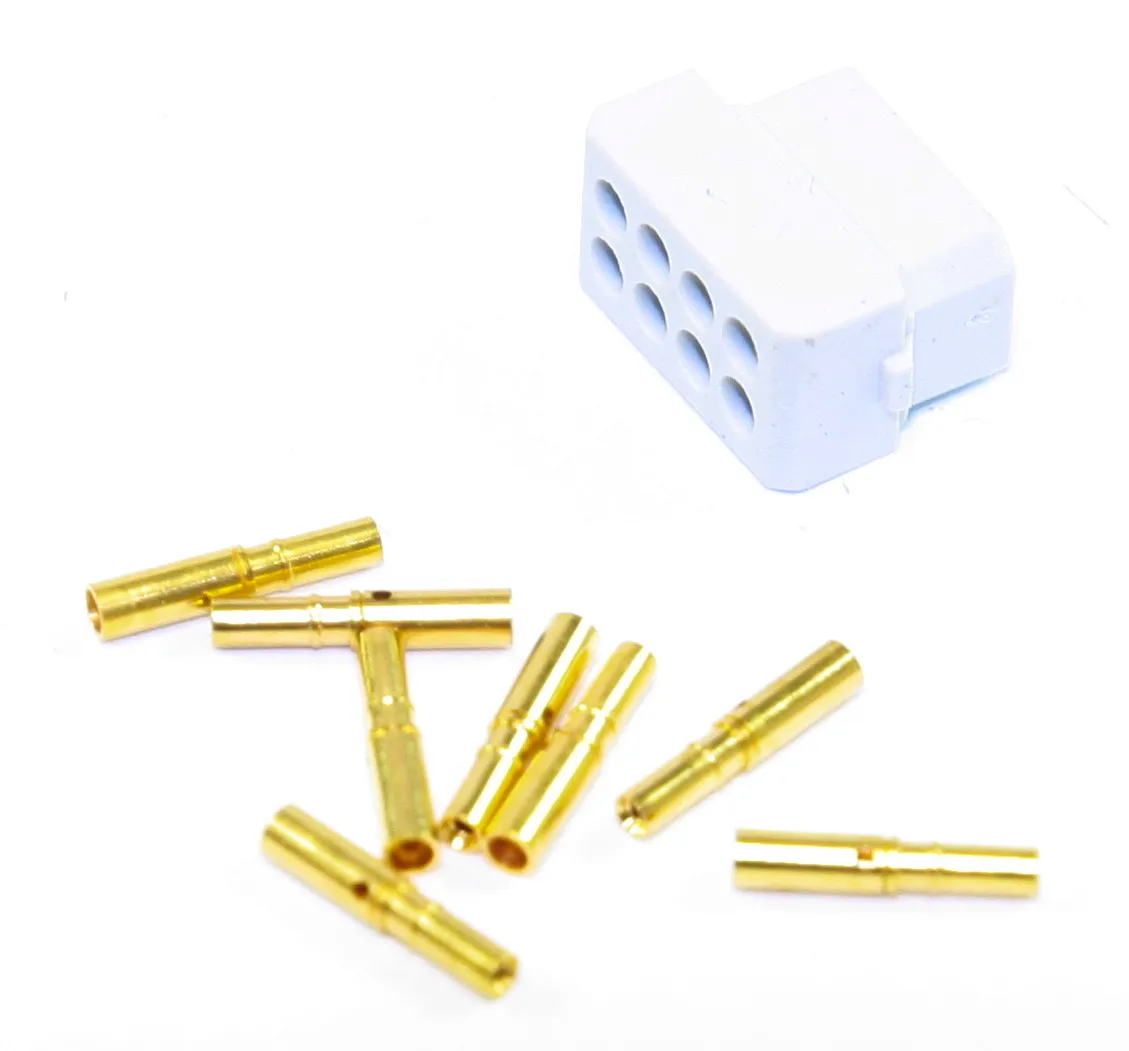

IDC Connector 8-Pole RM2.00 FEMALE
Varenummer:
135-768
Varekode: 202-F-08-C-01-U
100 stk.
på lager
- SOCKET, IDC, 8WAY, McMurdo
- Product Range: Datamate Micro200
- Contact Termination: IDC / IDT
- Gender: Receptacle
- No. of Contacts: 8
- No. of Rows: 2
- Pitch Spacing: 2mm
- Contact Plating: Gold
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (20-Jun-2013)
- Colour: Black
- Contact Resistance: 30mohm
- Current Rating: 1A
- Flammability Rating: UL 94 V-0
- Insulation Resistance: 1000Mohm
- Lead Spacing: 2mm
- Material: Glass - Filled Thermoplastic Polyester
- No. of Mating Cycles: 100
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Row Pitch: 2.00mm
- Termination Method: IDC
- Withstand Voltage: 650V
