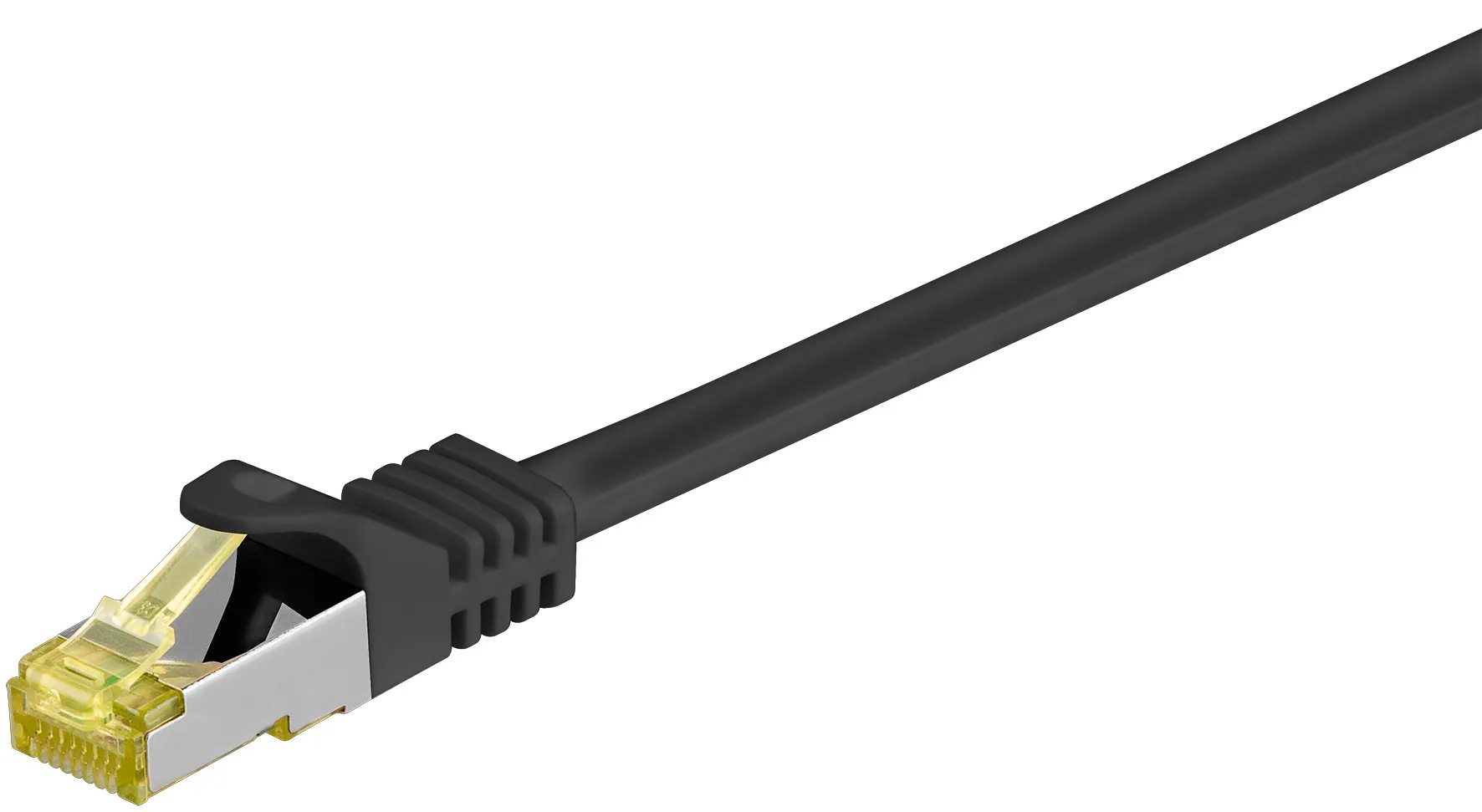

Netværkskabel Cat 7 (10/100/1000/10000 Mbit)S/FTP SORT 0,25m
Varenummer:
135-620
Varekode: W91572
Vægt: 20 g
16 stk.
på lager
Specifikationer
| Farve | sort |
|---|---|
| Netværkskabel, Forbindelse | 1:1 |
| Længde | 25 cm |
RJ45 patch cord S/FTP (PiMF), w. CAT 7 raw cable, black
LSZH, RJ45 plug, CU
suitable for 10 Gigabit (10/100/1000/10000 Mbit) network/600MHz
- LAN / network cable to connect network components with 2 x RJ45 connectors
- Cat 7 tested up to 600 MHz
- with 50µ gold plated PINs
- pairs screening: PIMF (pairs in metal foil) + outer shield: braiding
- with length indication on the slimline strain relief
- with latch protection
- pair-sequence acc. to EIA/TIA 568B
Technical specifications
- Connections
- Connection, type RJ45 male (8P8C)
- Connection 2, type RJ45 male (8P8C)
- Connection, shielding yes
- Latch protectionboth sides
- Cable
- Cable type round cable
- Specification CAT 7
- Shielding class S/FTP (PiMF)
- AWG 26/7 (stranded)
- Cable sheath diameter (approx.) 6.2 mm
- Inner conductor material CU (copper)
- Cable length 0.25 m
- Material cable sheath LSZH
- Number of shieldings 2 x
- Type 1, shielding foil (alu) PiMF
- Type 2, shielding braid (alu) overall shield
- Kink protection both sides
- LSZH compliant yes
- Signal transmission
- max. bandwidth 600 MHz
- General
- Consumption Unit 1 pc. in polybag
- Color black
-
Inkl. moms
Kr. 29,00
- v/10 – Kr. 20,00
