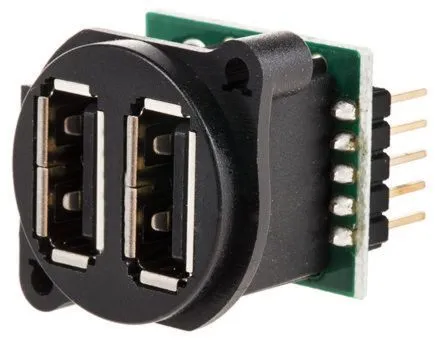

Dual USB2.0 Sockets in XLR Shell
Varenummer:
135-618
Varekode: CP30090
Vægt: 10 g
4 stk.
på lager
| CP30090 |
| USB 2.0 Double Adapter |
 |
| Features |
• USB 2.0 jack double in XLR housing for maximum density on the PCB
• Two isolated, independent output connections
• Configured as two signal contact rows in a grid of 5x2,54mm (0.1 inch.) for direct soldering on the board or a connection via fiber cable
• For audio, broadcast, AV, instrumentation and industrial equipment
Technical Specifications
|
|
| Insulation: | PTB (UL94-0) |
| Contact Material: | Brass |
| Contact Surface: | Au-plated |
| Contact Resistance, Max: | 30mOhm |
| Insulation Resistance, Min.: | 1000MOhm |
| Rated Current: | 1,5A |
| Rated Voltage: | 500V |
| Dielectric Strength (1Min.): | 500VRMS |
| Temperature Range | |
| CP30090: | -20...+80°C |
| CP30110, CP30111: | 0...+50°C |
| Short Term (10s): | +260°C |
