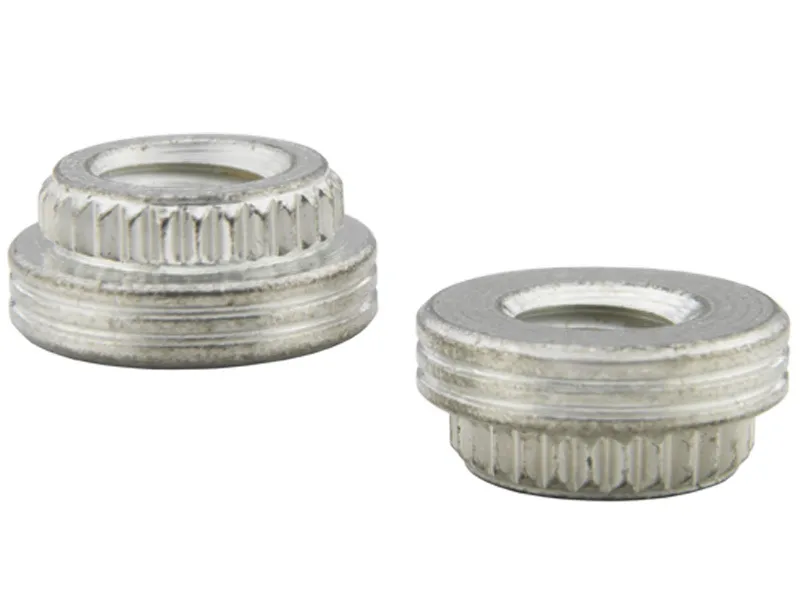

Pressnut M2 100 stk.

Varenummer: 135-316
Varekode: KF2-M2-ET
8 stk. på lager
Vis lignende produkter i kategorien "Møtrikker"
Specifications

Thread Size

 M2 x 0.4

Thread Code

 M2

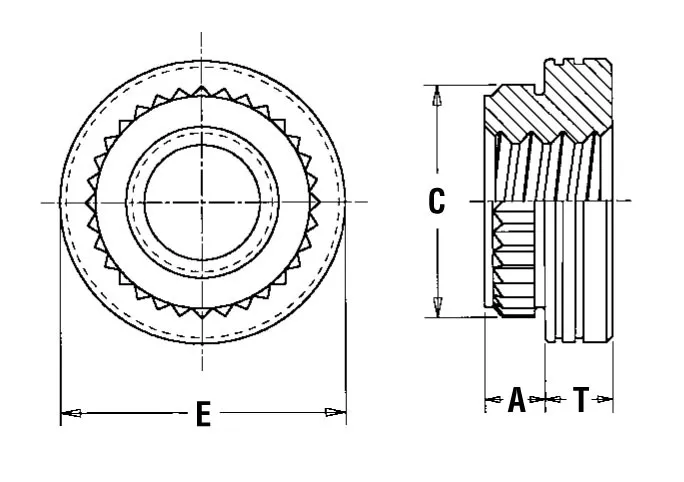

A (Shank) Max.

 1.53 mm

Min. Sheet Thickness

 1.53 mm

Hole Size in Sheet + 0.08

 3.73 mm

C ± 0.08

 4.19 mm

E ± 0.13

 5.56 mm

T ± 0.13

 1.5 mm

Min. Dist. Hole C/L to Edge

 4.20 mm

For Use in Sheet Hardness1

 HRB 60 / HB 107 or Less
PC Board

Thread Specification

 Internal, ASME B1.13M, 6H

Fastener Material

 Carbon Steel

Standard Finish

 Electro-Plated Bright Tin, ASTM B545, Class B with Preservative Coating

CAD Supplier

 PennEngineering® (PEM®)
1 HRB - Hardness Rockwell “B” Scale. HB - Hardness Brinell.
Inkl. moms
Kr. 99,00
  • v/5 – Kr. 75,00
