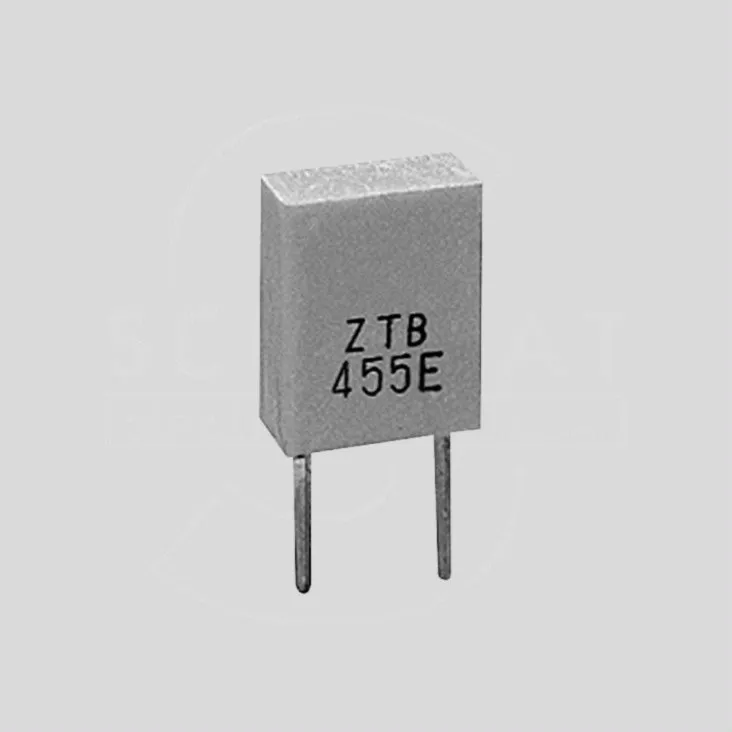

Ceramic Resonator 2-Pole 450kHz for Remote
Varenummer:
134-711
Varekode: ZTB450EB
30 stk.
på lager
Bestil nu for afsendelse mandag d. 5/10
Gruppe:
D9512
Ceramic Resonators
Series: ZTB, ZTA
Without Load Capacitance
Frequency: 455k...12MHz
D9512
Ceramic Resonators
Series: ZTB, ZTA
Without Load Capacitance
Frequency: 455k...12MHz
| Technical Specifications |
| Part Nr. | f | Tol. | TStab. | Age | Rres | Uwith | Riso |
| ZT_ | [MHz] | [%] | [%] | [%] | W | [V DC] | W |
| B455EB | 0,455 | ±2 | ±0,3 | ±0,5 | 20 | - | - |
| A2.00MG | 2,00 | ±0,5 | ±0,3 | ±0,3 | 80 | 100 | 5x108 |
| A3.58MG | 3,58 | ±0,5 | ±0,3 | ±0,3 | 30 | 100 | 5x108 |
| A4.00MG | 4,00 | ±0,5 | ±0,3 | ±0,3 | 30 | 100 | 5x108 |
| A12.00MT | 12,00 | ±0,5 | ±0,3 | ±0,3 | 25 | 100 | 5x108 |
| f = Frequency, Tol. = Frequency, TStab = Temperature Stability, -20...+80C, Age = Aging for 10 Years, Rres = Resonant Resistance, Uwith = Voltage Sustaining Capability, 5s, Riso = Insulation Resistance | |||||||
 | |||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces |
|
| Manufacturer |
| Various |
|
