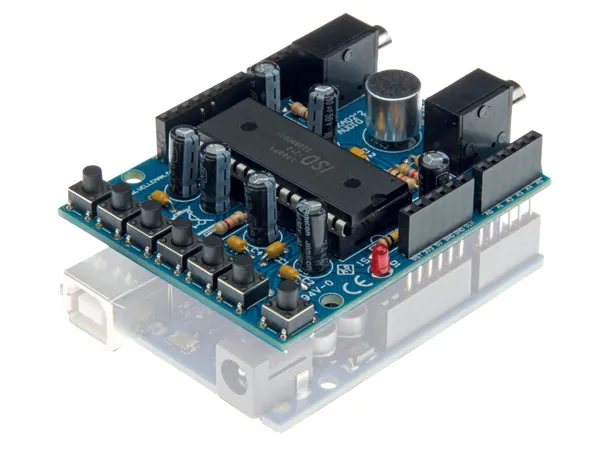

BYGGESÆT: Audio SHIELD til ARDUINO™ (byggesæt)

Varenummer: 134-323
Varekode: KA02
Vægt: 100 g
0 stk. på lager
Vis lignende produkter i kategorien "Arduino"

Record your voice via a built-in microphone or a line input

Egenskaber:

  • 60 second recording time
  • start playback, record, via on-board buttons or via Arduino UNO
  • playback via a speaker or a line output
  • downloadable sample sketch and library
  • stackable design: the shield can be stacked with other shields
  • large user community
  • requires 1 Arduino UNO (not included)

Tekniske detaljer:

  • audio sample frequency: 8 kHz
  • uses pin 10 on an Arduino UNO board as a Chip Select
  • uses the ICSP pins on an Arduino as a serial connection to the shield to free up I/O pins
  • memory write up to 100.000 X
  • Strrelse: 80 55 30 mm / 3.15 2.16 1.18"
Inkl. moms
Kr. 209,00
