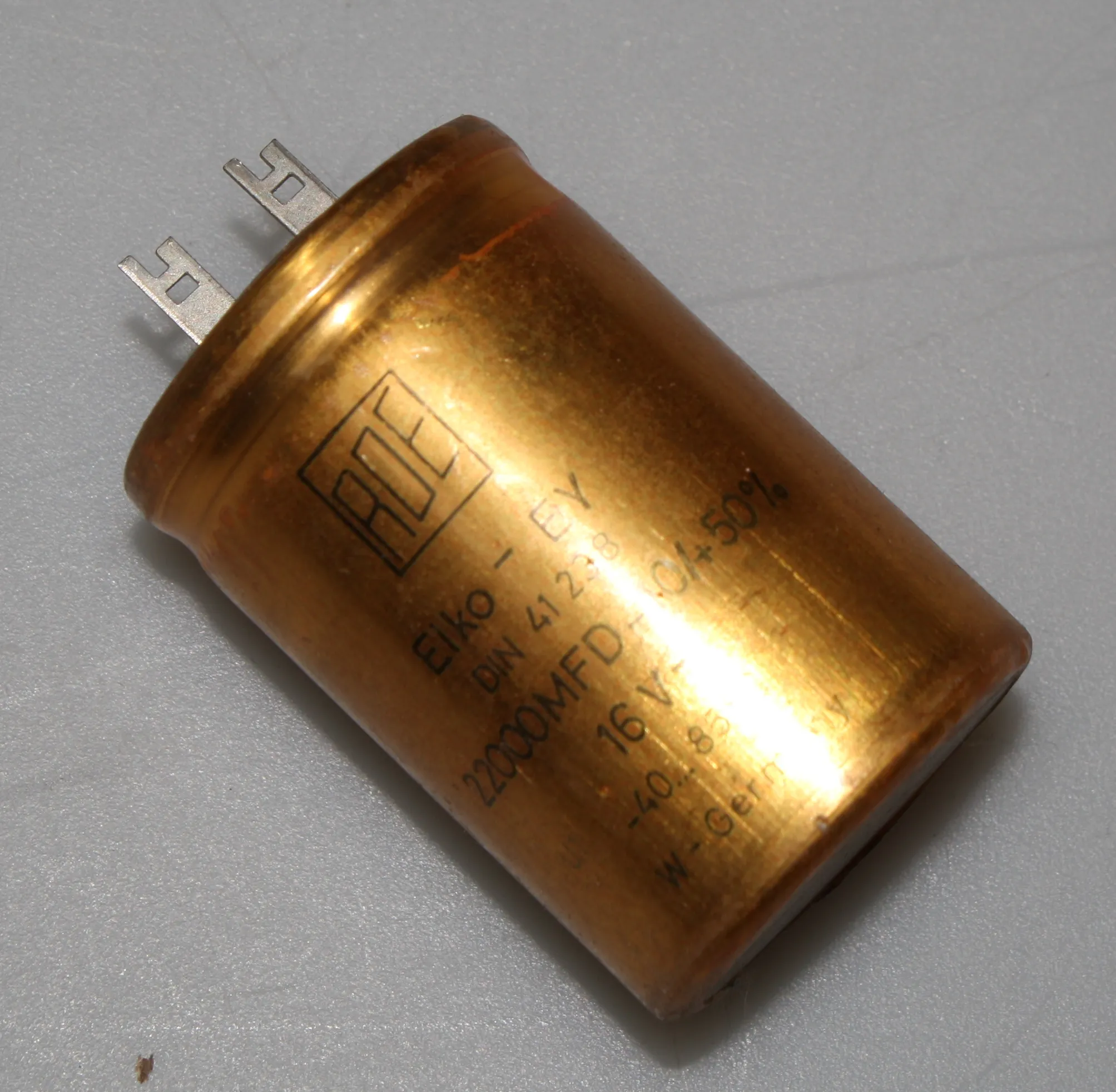

El-Capacitor 22000µF/16V-P10-35x52
Varenummer:
134-103
Varekode: CS22000/16-35X52
1 stk.
på lager
Specifikationer
| Kondensator-type | radial |
|---|---|
| Produkt | kondensator |
| Temperatur | -40 – 85 °C |
| Tolerance | ±20 % |
| Spænding, max. | 16 V |
| Højde | 5.2 cm |
| Diameter | 3.5 cm |
| Kapacitans | 22 000 µF |
| Benafstand | 1 cm |
- CAPACITOR, 22000UF 16V
- Capacitance: 22000µF
- Capacitance Tolerance: ± 20%
- Diameter: 35mm
- ESR: 0.033ohm
- Height: 52mm
- Lead Spacing: 10mm
- Lifetime @ Temperature: 12000 hours @ 85°C
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Product Range CAPACITOR, 22000UF 16V - VISHAY BC COMPONENTS: VISHAY - 056 PSM Series
- Voltage Rating: 16V
- AC Ripple Current @ 100Hz: 4.51A
- Capacitance Tolerance ±: ± 20%
- Capacitor Mounting: Through Hole
- Capacitor Terminals: Quick Connect
- Climatic Category: 40/085/56
- ESR Frequency: 100Hz
- ESR Temperature: 20°C
- External Length / Height: 52mm
- Frequency Tolerance: 100Hz
- Leakage Current: 708µA
- No. of Pins: 2
- Operating Temperature Range: -40°C to +85°C
- Operating life Time: 12000h
- PCB Hole Diameter: 2mm
- Ripple Current AC: 4.51A
- Ripple Current Frequency: 100Hz
- Ripple Current Temperature: 85°C
- Tolerance +: 0.2%
- Tolerance -: 0.2%
- Voltage Rating DC Max: 16V
- Voltage Rating V DC: 16V
