Potentiometer 20/4 Mono LOG 470K (20mm hus)
Varenummer:
133-593
Varekode: P20MGK470-4MM
108 stk.
på lager
Electrical Specifications
 |
|
| Rated Power (TU=40°C): | 0,4W |
| Operating Voltage, Max.: | 500V DC |
| Insulation Voltage: | 1000V AC |
| Insulation Resistance | 5GW |
| Resistance Tolerance | |
| 100W...1MW: | 20% |
| >1MW: | 30% |
|
|
| Mechanical Specifications |
|
|
| Rotation Angle (Mechanical): | 300° ±5° |
| Operating Torque: | 0,4...1,5Ncm |
| Stop Strength, Max.: | 80Ncm |
| Weight, approx.: | 11g |
|
|

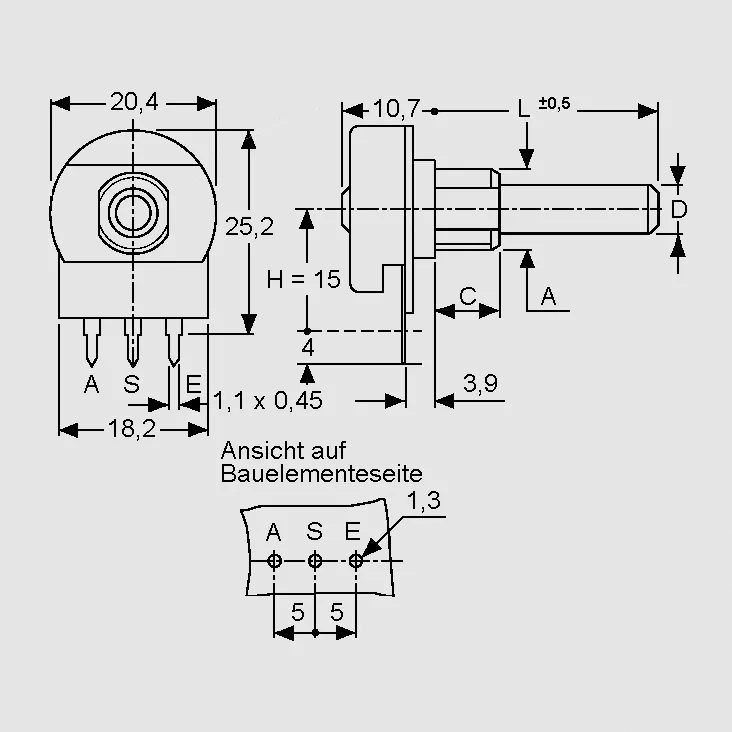

| Dimensions |
|
|
| Plastic Spindle | |
| Dimensions (D): | 4,0mm |
| Length (L): | 60,0mm |
| Bush (C): | 8,0mm |
| Spindle (A): | M10x0,75 |
| PC Terminations: | 5/5 (10)mm |
|
|
Inkl. moms
Kr. 15,00
- v/10 – Kr. 11,25
- v/50 – Kr. 8,75
- v/100 – Kr. 6,25
