Potentiometer 16/4 Mono LOG 100K

Varenummer: 133-588
Varekode: P16MGK100
4 stk. på lager
Vis lignende produkter i kategorien "4mm. Aksel, mono, LOG"



Electrical Specifications

Rated Power (TU = 40°C):
 0,25W
Operating Voltage, Max.:
 350V DC
Insulation Voltage:
 500V AC
Insulation Resistance:
 ³5GW
Resistance Tolerance
100W...1MW:
 ±20%
>1MW:
 ±30%
Mechanical Specifications

Rotation Angle (Mechanical):
 270° ±5°
Operating Torque:
 0,4...1,5Ncm
Permissible Torque at End Stop, Max.:
 35Ncm
Weight, approx.:
 6g

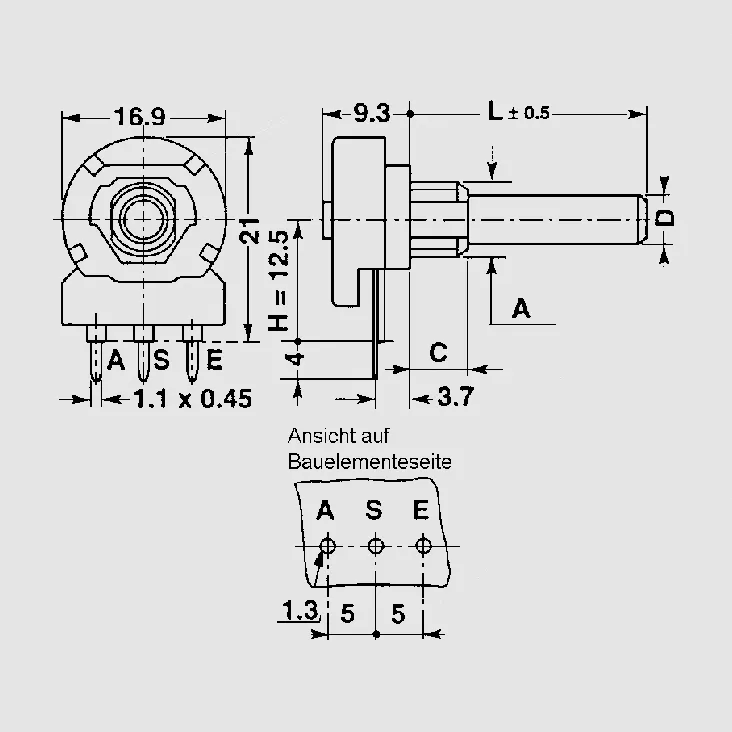

Dimension

Plastic Spindle
Diameter (D):
 4,0mm
Length (L):
 32,0mm
Bush (C):
 6,0mm
Spindle (A):
 M7x0,75
Solder Tag Terminations:
 5/5(10)mm


Manufacturer

http://www.radiohm.com

Inkl. moms
Kr. 39,00
