Potentiometer 16/4 Mono Lin 10 K
Varenummer:
133-553
Varekode: P16MLK010
Vægt: 26 g
Produktet udgår - Sælges så længe lager haves!
Vis lignende produkter i kategorien "4mm. Aksel, mono, LIN"
Electrical Specifications
|
 |
|
|
Rated Power (TU = 40°C):
|
0,25W
|
Operating Voltage, Max.:
|
350V DC
|
Insulation Voltage:
|
500V AC
|
Insulation Resistance:
|
³5GW
|
Resistance Tolerance
|
100W...1MW:
|
±20%
|
>1MW:
|
±30%
|
|

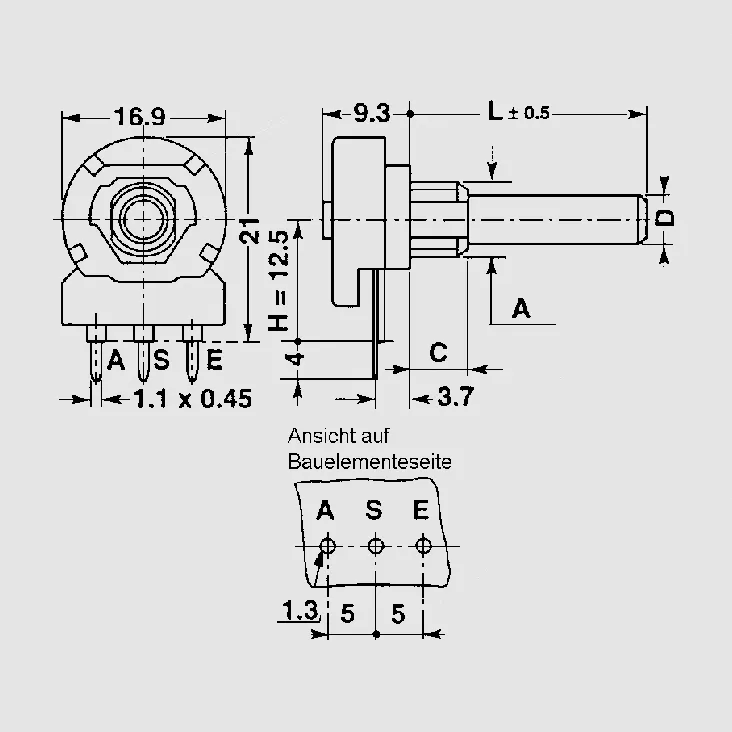

Mechanical Specifications
|
|
|
|
Rotation Angle (Mechanical):
|
270° ±5°
|
Operating Torque:
|
0,4...1,5Ncm
|
Permissible Torque at End Stop, Max.:
|
35Ncm
|
Weight, approx.:
|
6g
|
|
|
|
|
Plastic Spindle
|
Diameter (D):
|
4,0mm
|
Length (L):
|
32,0mm
|
Bush (C):
|
6,0mm
|
Spindle (A):
|
M7x0,75
|
Solder Tag Terminations:
|
5/5(10)mm
|
|
|
