Potentiometer 16/4 Mono Lin 4K7 2322 380 74406
Varenummer:
133-551
Varekode: P16MLK004,7-D
229 stk.
på lager
= P16MLK004,7 - men aksel er yderst skåret af og D-formet 2322 380 74406
Electrical Specifications
 |
|
| Rated Power (TU = 40°C): | 0,25W |
| Operating Voltage, Max.: | 350V DC |
| Insulation Voltage: | 500V AC |
| Insulation Resistance: | ³5GW |
| Resistance Tolerance | |
| 100W...1MW: | ±20% |
| >1MW: | ±30% |
|
|
| Mechanical Specifications |
|
|
| Rotation Angle (Mechanical): | 270° ±5° |
| Operating Torque: | 0,4...1,5Ncm |
| Permissible Torque at End Stop, Max.: | 35Ncm |
| Weight, approx.: | 6g |
|
|

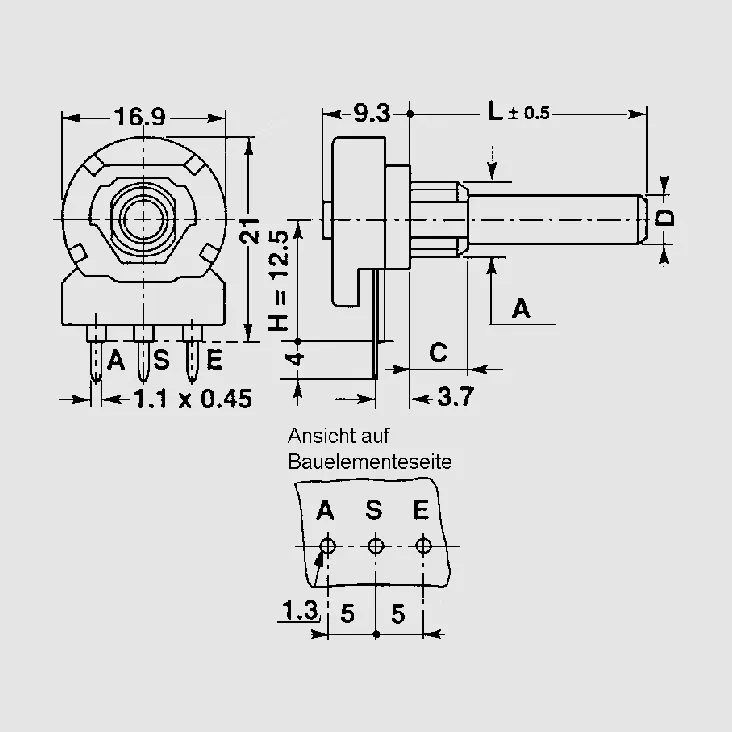

| Dimension |
|
|
| Plastic Spindle | |
| Diameter (D): | 4,0mm |
| Length (L): | 15,0mm |
| Bush (C): | 6,0mm |
| Spindle (A): | M7x0,75 |
| Solder Tag Terminations: | 5/5(10)mm |
|
|
Inkl. moms
Kr. 10,00
- v/10 – Kr. 8,75
- v/50 – Kr. 7,50
- v/150 – Kr. 6,25
Potentiometer 16/4 Mono Lin 4K7 2322 380 74406
133-551
/ P16MLK004,7-D
229 stk.
på lager
= P16MLK004,7 - men aksel er yderst skåret af og D-formet 2322 380 74406
Electrical Specifications
|
|
| Rated Power (TU = 40°C): | 0,25W |
| Operating Voltage, Max.: | 350V DC |
| Insulation Voltage: | 500V AC |
| Insulation Resistance: | ³5GW |
| Resistance Tolerance | |
| 100W...1MW: | ±20% |
| >1MW: | ±30% |
|
|
| Mechanical Specifications |
|
|
| Rotation Angle (Mechanical): | 270° ±5° |
| Operating Torque: | 0,4...1,5Ncm |
| Permissible Torque at End Stop, Max.: | 35Ncm |
| Weight, approx.: | 6g |
|
|
| Dimension |
|
|
| Plastic Spindle | |
| Diameter (D): | 4,0mm |
| Length (L): | 15,0mm |
| Bush (C): | 6,0mm |
| Spindle (A): | M7x0,75 |
| Solder Tag Terminations: | 5/5(10)mm |
|
|
