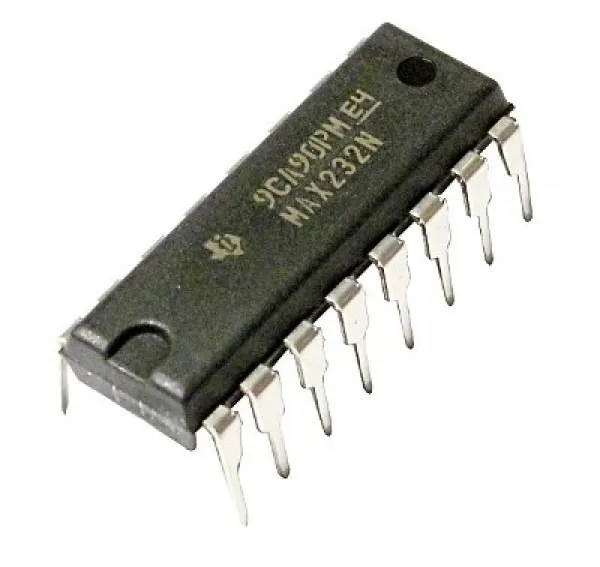

RS232E 2xDr./Rec. 5V DIP16
Varenummer:
133-538
Varekode: MAX232N
Vægt: 5 g
8 stk.
på lager
- IC, TRANSCEIVER, 5V
- Device Type: Transceiver
- IC Interface Type: RS232
- No. of Drivers: 2
- Supply Voltage Min: 4.5V
- Supply Voltage Max: 5.5V
- Driver Case Style: DIP
- No. of Pins: 16
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Packaging: Each
- Base Number: 232
- Data Rate: 120Kbps
- Line / Bus Driver / Receiver / Transceiver Type: RS-232
- Logic Case Style: DIP
- MSL: -
- Operating Temperature Range: 0°C to +70°C
- SVHC: No SVHC (16-Dec-2013)
- Supply Current: 8mA
- Supply Voltage Range: 4.5V to 5.5V
- Termination Type: Through Hole
120Kbps Dual EIA-232 Driver/Receiver in DIP-16 Package
The MAX232N is a dual driver/receiver that includes a capacitive voltage generator to supply TIA/EIA-232-F voltage levels from a single 5V supply. Each receiver converts TIA/EIA-232-F inputs to 5V TTL/CMOS levels. These receivers have a typical threshold of 1.3V, a typical hysteresis of 0.5V, and can accept ±30V inputs. Each driver converts TTL/CMOS input levels into TIA/EIA-232-F levels. The driver, receiver, and voltage generator functions are available as cells in the Texas Instruments LinASIC library.
- Operates from a single 5V power supply with 1°F charge pump capacitors
- Operates up to 120kbit/s
- Two drivers and two receivers
- ±30V input levels
- Low supply current: 8mA typ.
- Consumer Electronics
- Industrial
- Multimedia
- Wireless
Produktfiler
