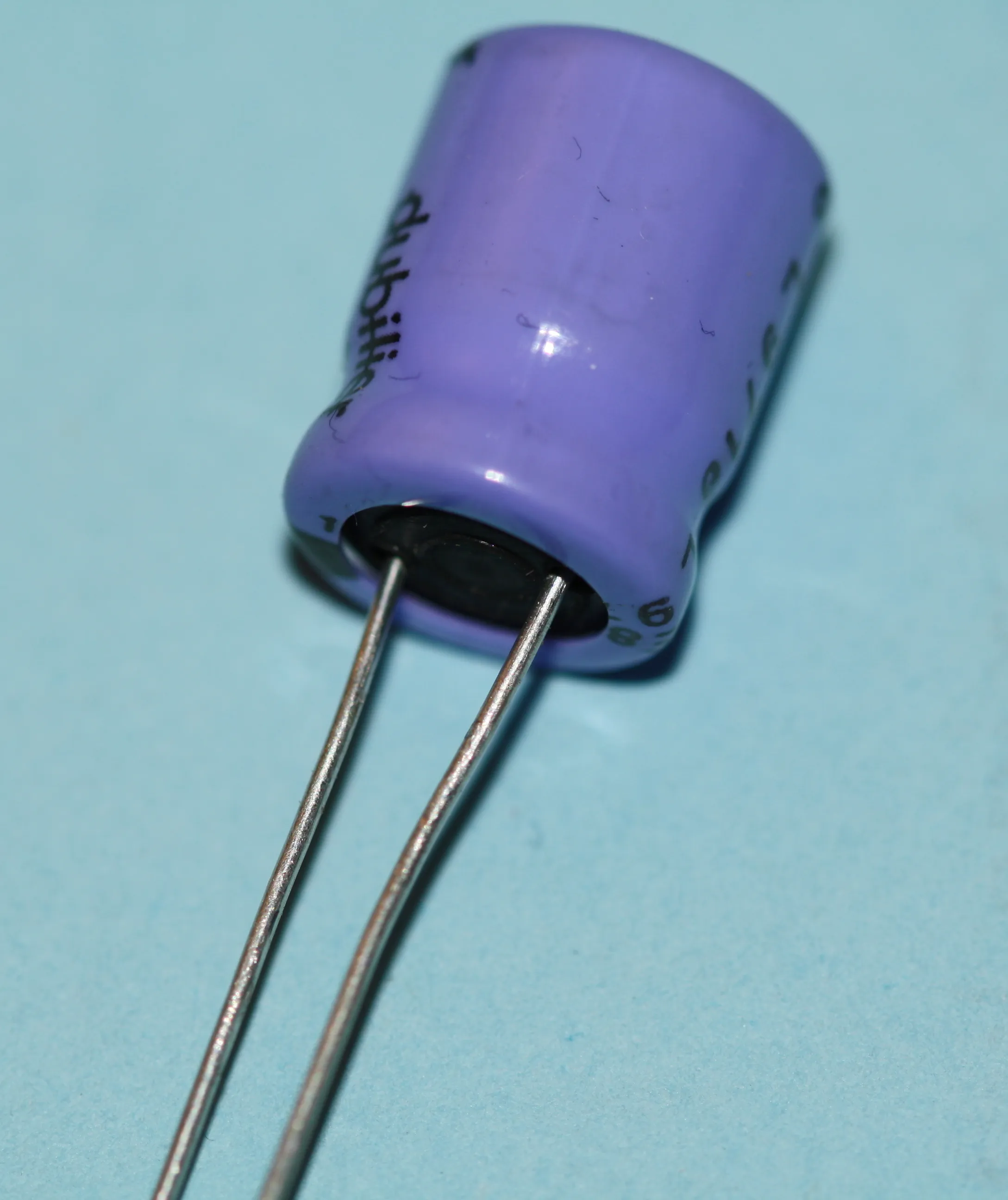

El-Capacitor 1µF/450V-P5-10x12,5
Varenummer:
133-172
Varekode: CS0001/450-P5
28 stk.
på lager
Bestil nu for afsendelse i morgen
Specifikationer
| Kondensator-type | radial |
|---|---|
| Produkt | kondensator |
| Temperatur | -40 – 85 °C |
| Spænding, max. | 450 V |
| Tolerance | ±20 % |
| Kapacitans | 1 µF |
| Højde | 1.25 cm |
| Diameter | 1 cm |
| Benafstand | 5 mm |
- UPS2W010MPD
- CAP, ALU ELEC, 1UF, 450V, RAD
- Product Range: NICHICON - PS Series
- Capacitance: 1µF
- Capacitance Tolerance: ± 20%
- Voltage Rating: 450V
- Diameter: 10mm
- ESR: -
- Height: 12.5mm
- Capacitor Terminals: Radial Leaded
- Lead Spacing: 5mm
- Life Time @ Temperature: 1000 hours @ 105°C
- Operating Temperature Min: -25°C
- Operating Temperature Max: 105°C
- Packaging: -
- SVHC: No SVHC (16-Dec-2013)
- Capacitance Tolerance ±: ± 20%
- External Length / Height: 12.5mm
- Impedance: 9999ohm
- Lead Diameter: 0.6mm
- No. of Pins: 2
- Operating Temperature Range: -25°C to +105°C
- Operating life Time: 3000h
- Ripple Current AC: 18mA
- Ripple Current Frequency: 120Hz
- Ripple Current Temperature: 105°C
- Terminal Type: Wire Ended
- Tolerance +: 20%
- Tolerance -: 20%
- Voltage Rating V DC: 450V
Inkl. moms
Kr. 6,90
- v/10 – Kr. 5,31
- v/100 – Kr. 4,38
- v/1000 – Kr. 2,81
