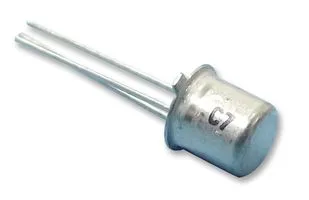

PNP 45V 0,1A 0,3W TO-18
Varenummer:
132-826
Varekode: BC177
23 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere kan skaffes fredag d. 20/11
- TRANSISTOR, PNP, TO-18
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: 45V
- Transition Frequency ft: 200MHz
- Power Dissipation Pd: 600mW
- DC Collector Current: 200mA
- DC Current Gain hFE: 120
- Transistor Case Style: TO-18
- No. of Pins: 3
- Operating Temperature Max: 200°C
- MSL: -
- SVHC: No SVHC (16-Dec-2013)
- Collector Emitter Voltage Vces: -200mV
- Continuous Collector Current Ic Max: 100mA
- Current Ic Continuous a Max: 100mA
- Current Ic hFE: 2mA
- Gain Bandwidth ft Min: 200MHz
- Gain Bandwidth ft Typ: 300MHz
- Hfe Min: 120
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +200°C
- Pin Configuration: a
- Power Dissipation Ptot Max: 600mW
- Voltage Vcbo: 50V
Inkl. moms
Kr. 8,83
Produktfiler
PNP 45V 0,1A 0,3W TO-18
132-826
/ BC177
23 stk.
på lager
Bestil nu for afsendelse i morgen
Ved bestilling nu, får vi dem hjem fredag d. 20/11
- TRANSISTOR, PNP, TO-18
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: 45V
- Transition Frequency ft: 200MHz
- Power Dissipation Pd: 600mW
- DC Collector Current: 200mA
- DC Current Gain hFE: 120
- Transistor Case Style: TO-18
- No. of Pins: 3
- Operating Temperature Max: 200°C
- MSL: -
- SVHC: No SVHC (16-Dec-2013)
- Collector Emitter Voltage Vces: -200mV
- Continuous Collector Current Ic Max: 100mA
- Current Ic Continuous a Max: 100mA
- Current Ic hFE: 2mA
- Gain Bandwidth ft Min: 200MHz
- Gain Bandwidth ft Typ: 300MHz
- Hfe Min: 120
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +200°C
- Pin Configuration: a
- Power Dissipation Ptot Max: 600mW
- Voltage Vcbo: 50V
