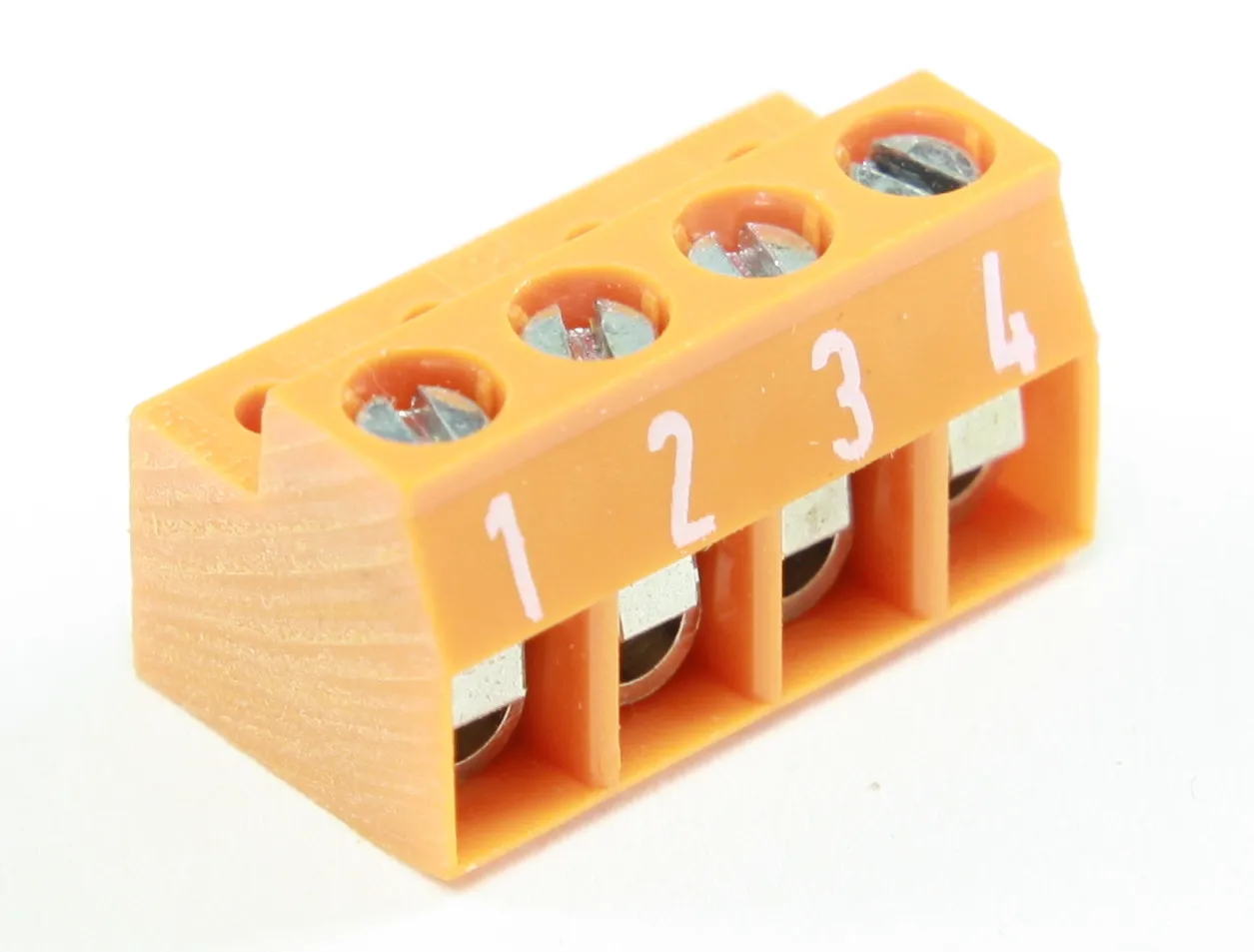

Term.Block 4-Pole Orange mrkt:1.2.3.4
Varenummer:
132-824
Varekode: ARK130/4
Vægt: 8 g
1 stk.
på lager
Gruppe: F9541
PTR Terminal Blocks and Box Headers
Series: AK130, STL130
Screw Principle with Wire Guard
Conductor: Horizontal
Pitch: 5mm
| ARK130_ |
 |
| Features |
| • Attach vertically or horizontally to the PCB |
|
| Technical Specifications |
|
|||||||||||||||||||||
| Rated Voltage (EN 61984): | 250V | Rated Current (T60): | 10A | Test Voltage: | 4kV | Rated Cross Section Single Stranded Wire: | 1,5mm2 | Rated Cross Section Fine Stranded Wire: | 1,0mm2 | Stripped Length: | 6,0mm | Insulating Material: | PA | Temperature Range: | -30...+105°C | Flammability Class: | UL94V-0 | Colour: | Dark Grey | ||
|
|||||||||||||||||||||
| Dimensions |
|
|||||||||||||||||||
| Part Nr. | L | H | T | [mm] | ARK130/2 | 10,0 | 10,8 | 13,5 | ARK130/3 | 15,0 | 10,8 | 13,5 | |||||||
|
|||||||||||||||||||
| STL130/24 |
| 24 Pole Pin Block |
|
| Construction |
| • 24 pole pin block, refractive in 5mm pitch |
|
| Technical Specifications |
|
|||||||||||||||
| Rated Voltage (DIN VDE 0627)1): | 250V | Rated Current (T60): | 10A | Test Voltage: | 4kV | Holes in PCB: | Ø1,5mm | Insulating Material: | PA | Temperature Range: | -30...+105°C | Flammability Class: | UL94V-0 | ||
| 1)Applied For VDE Approval | |||||||||||||||
|
|||||||||||||||
| Approvals |
 EN 60998,  1059,  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces STL130/24: 1 PKU = 25 pieces |
|
| Manufacturer |
 |
| http://www.ptr-messtechnik.de |
|
Inkl. moms
Kr. 15,00
