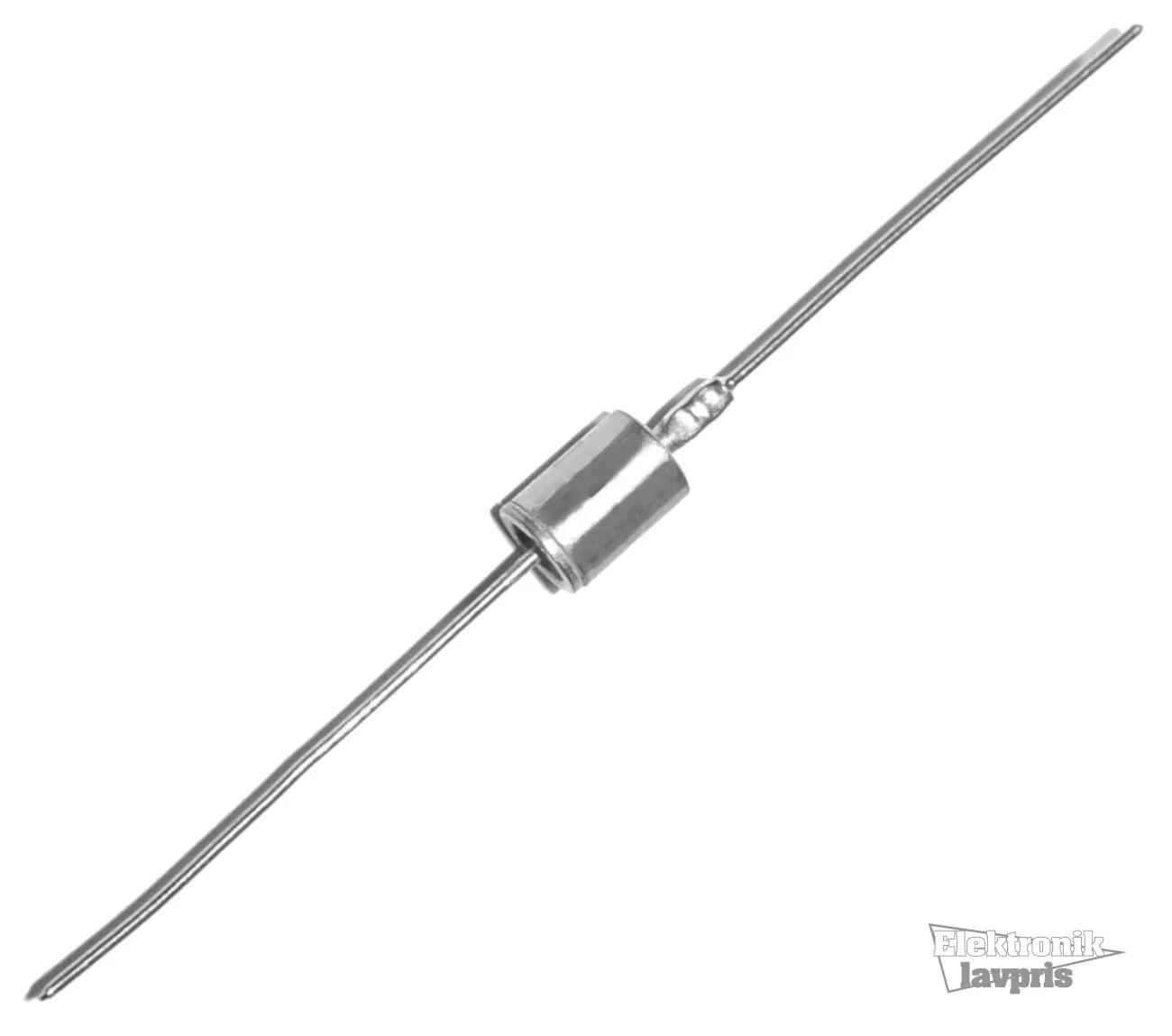

TVS Diode Bip 1500W 12V DO-13 (1,5KE12CA)
Varenummer:
132-692
Varekode: 1N6043A
Vægt: 1 g
0 stk.
på lager
TVS Diode, 1500W, 21.7V, 10.2V, DO-201
Tovejs
- Transient Voltage Suppressors
- Polarity: Bidirectional
- Operating Voltage: 12 V
- Breakdown Voltage: 15.8 V
- Clamping Voltage: 21.2 V
- Peak Surge Current: 71 A
- Series: 1N60
- Package/Case: DO-13
- Minimum Operating Temperature: - 55 C
- Maximum Operating Temperature: + 150 C
- Brand: Littelfuse
- Dimensions: 5.58 mm Dia. x 5.58 mm W x 9 (Max) mm L
- Peak Pulse Power Dissipation: 15000 W
- Termination Style: Axial
Inkl. moms
Kr. 6,81
- v/10 – Kr. 5,67
- v/25 – Kr. 4,54
Produktfiler
TVS Diode Bip 1500W 12V DO-13 (1,5KE12CA)
132-692
/ 1N6043A
0 stk.
på lager
TVS Diode, 1500W, 21.7V, 10.2V, DO-201
Tovejs
- Transient Voltage Suppressors
- Polarity: Bidirectional
- Operating Voltage: 12 V
- Breakdown Voltage: 15.8 V
- Clamping Voltage: 21.2 V
- Peak Surge Current: 71 A
- Series: 1N60
- Package/Case: DO-13
- Minimum Operating Temperature: - 55 C
- Maximum Operating Temperature: + 150 C
- Brand: Littelfuse
- Dimensions: 5.58 mm Dia. x 5.58 mm W x 9 (Max) mm L
- Peak Pulse Power Dissipation: 15000 W
- Termination Style: Axial
