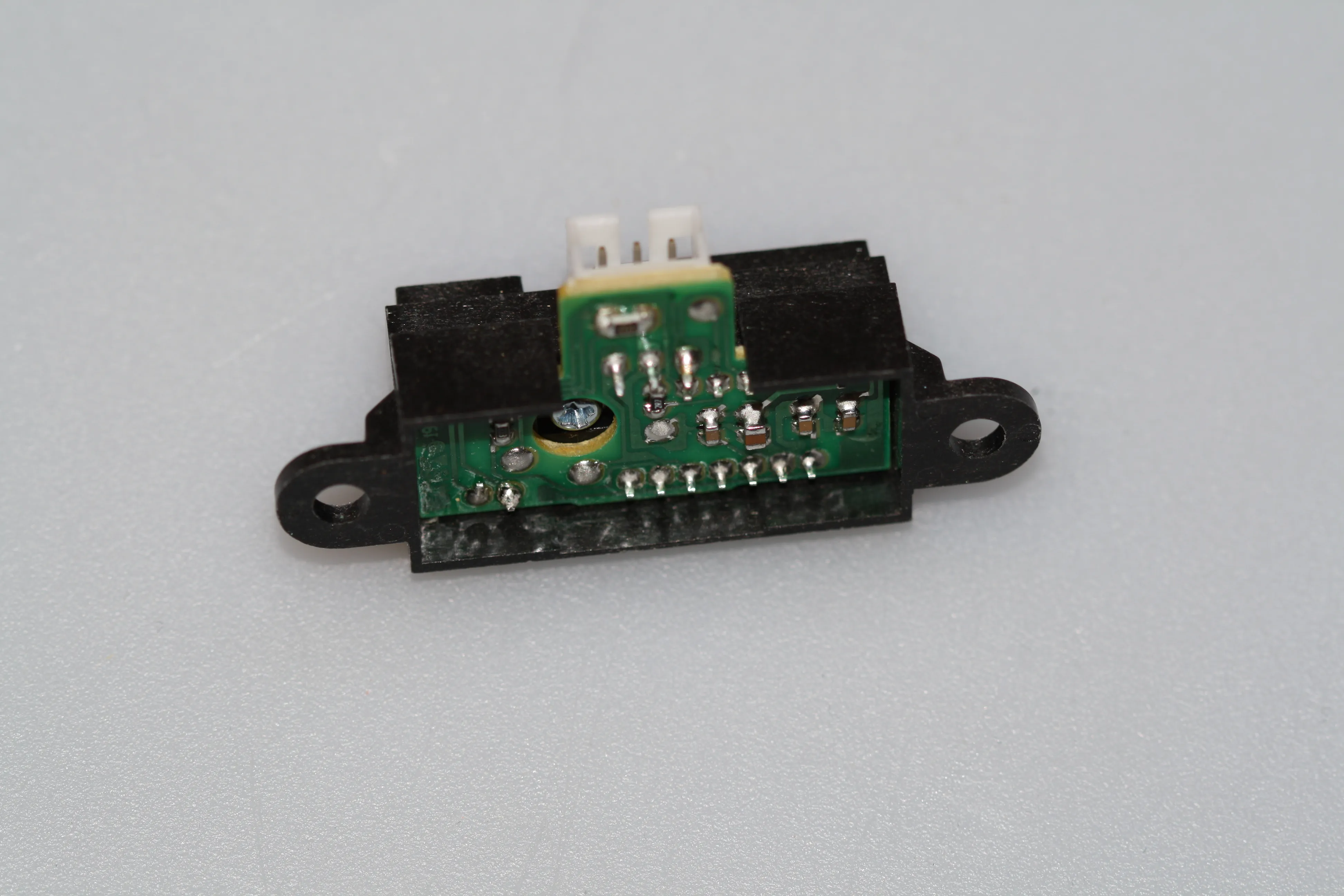

4-30 cm Infrared Distance Sensor
Details
|
Information |
|
|
Sensing Range Max |
300mm |
|
Sensor Output1 |
Analogue |
|
Supply Voltage DC Min |
4.5V |
|
Supply Voltage DC Max |
5.5V |
|
Detecting Distance |
4cm to 30cm |
|
External Depth |
18.9mm |
|
External Length / Height |
13.5mm |
|
External Width |
44.5mm |
|
Operating Current DC |
22mA |
|
Operating Temperature Max |
60°C |
|
Operating Temperature Min |
-10°C |
|
Operating Temperature Range |
-10°C to +60°C |
|
Pinout |
|
|
1 |
Vo |
|
2 |
GND |
|
3 |
VCC |
A datasheet for this product is available on our support forum here.
