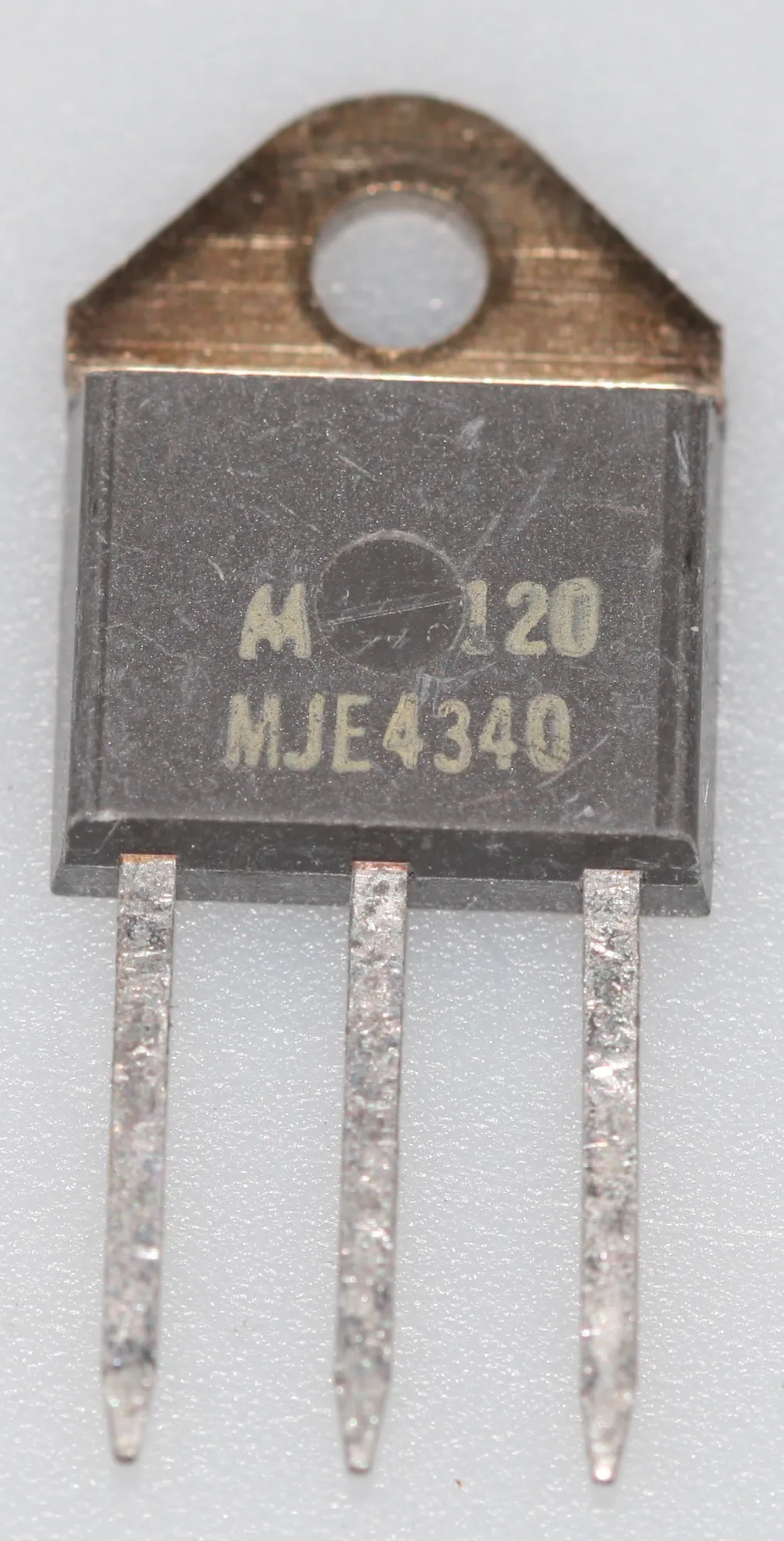

NPN 16A,100-160V,125W TO-218
Type Designator: MJE4340
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 125
Maximum collector-base voltage |Ucb|, V: 100
Maximum collector-emitter voltage |Uce|, V: 100
Maximum emitter-base voltage |Ueb|, V: 7
Maximum collector current |Ic max|, A: 16
Maksimalna temperatura (Tj), °C: 150
Transition frequency (ft), MHz: 1
Collector capacitance (Cc), pF: 800
Forward current transfer ratio (hFE), min: 20
Noise Figure, dB: -
Package of MJE4340 transistor: TO218
