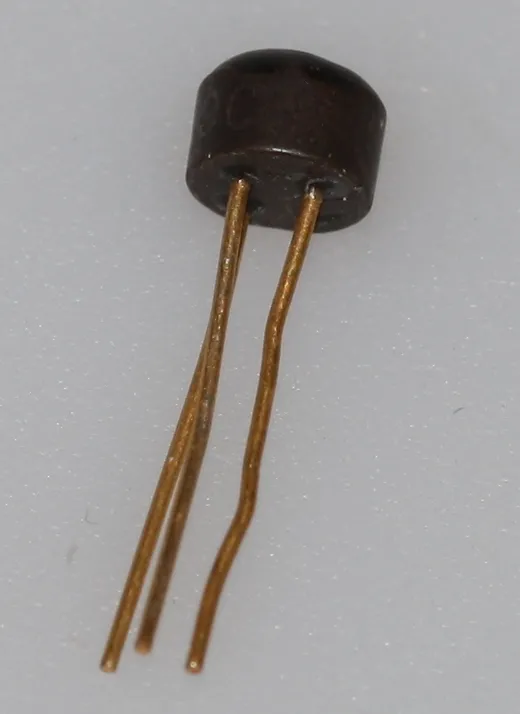

PNP 45V 100mA 0,3W TO-106
Material of transistor: Si
Polarity: PNP
Maximum collector power dissipation (Pc), W: 0.3
Maximum collector-base voltage |Ucb|, V: 45
Maximum collector-emitter voltage |Uce|, V: 45
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 0.1
Maksimalna temperatura (Tj), °C: 125
Transition frequency (ft), MHz: 100
Collector capacitance (Cc), pF: 6
Forward current transfer ratio (hFE), min: 75
Noise Figure, dB: -
Package of BC204 transistor: TO106
