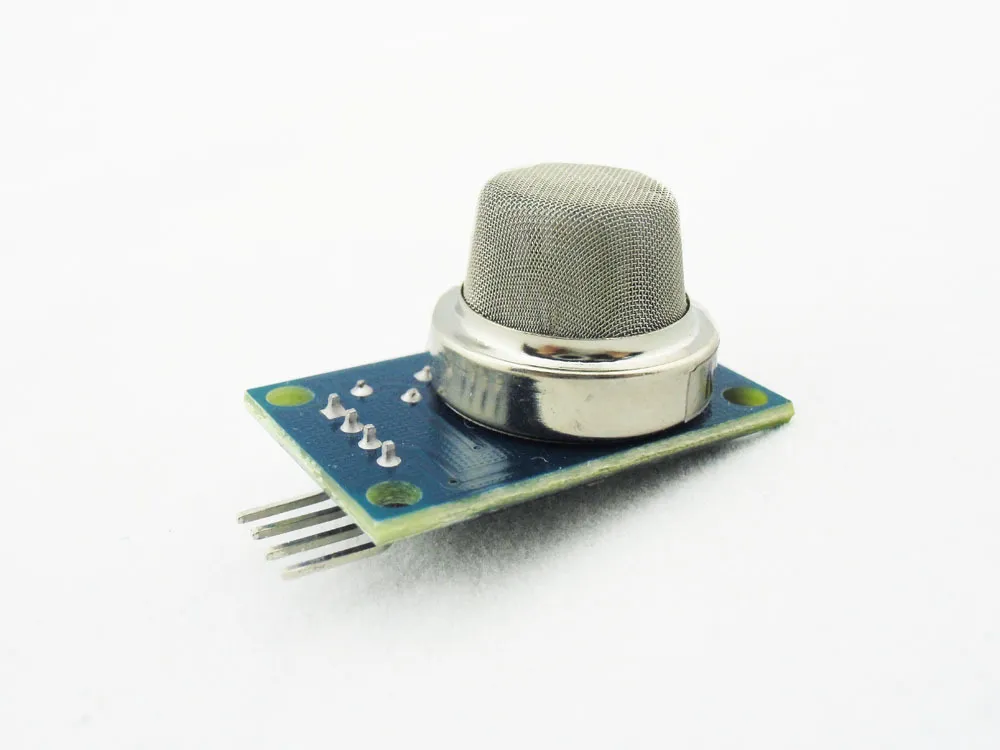

Gas Sensor (MQ2)
Varenummer:
131-161
Varekode:
MODU0001
Vægt:
50 g
Lagerstatus:
Lager: 10 stk.
Details
The MQ2 analogue gas sensor is used in gas leakage detection equipment in consumer and industry markets, this sensor is suitable for detecting LPG, i-butane, propane, methane, alcohol, Hydrogen and smoke. It has a high sensitivity and fast response time. And the sensitivity can be adjusted by the potentiometer.
Specification
- Power supply requirements: 5V
- Interface type: Analogue
- Pin Definition: 1-Output 2-GND 3-VCC
- Wide detecting scope
- Fast response and High sensitivity
- Simple drive circuit
- Stable and long life
- Approximate Size: 3.5cm x 2.2cm
Stregkode:
4250236819938
Intern reference:
131161
Varekode:
MODU0001
