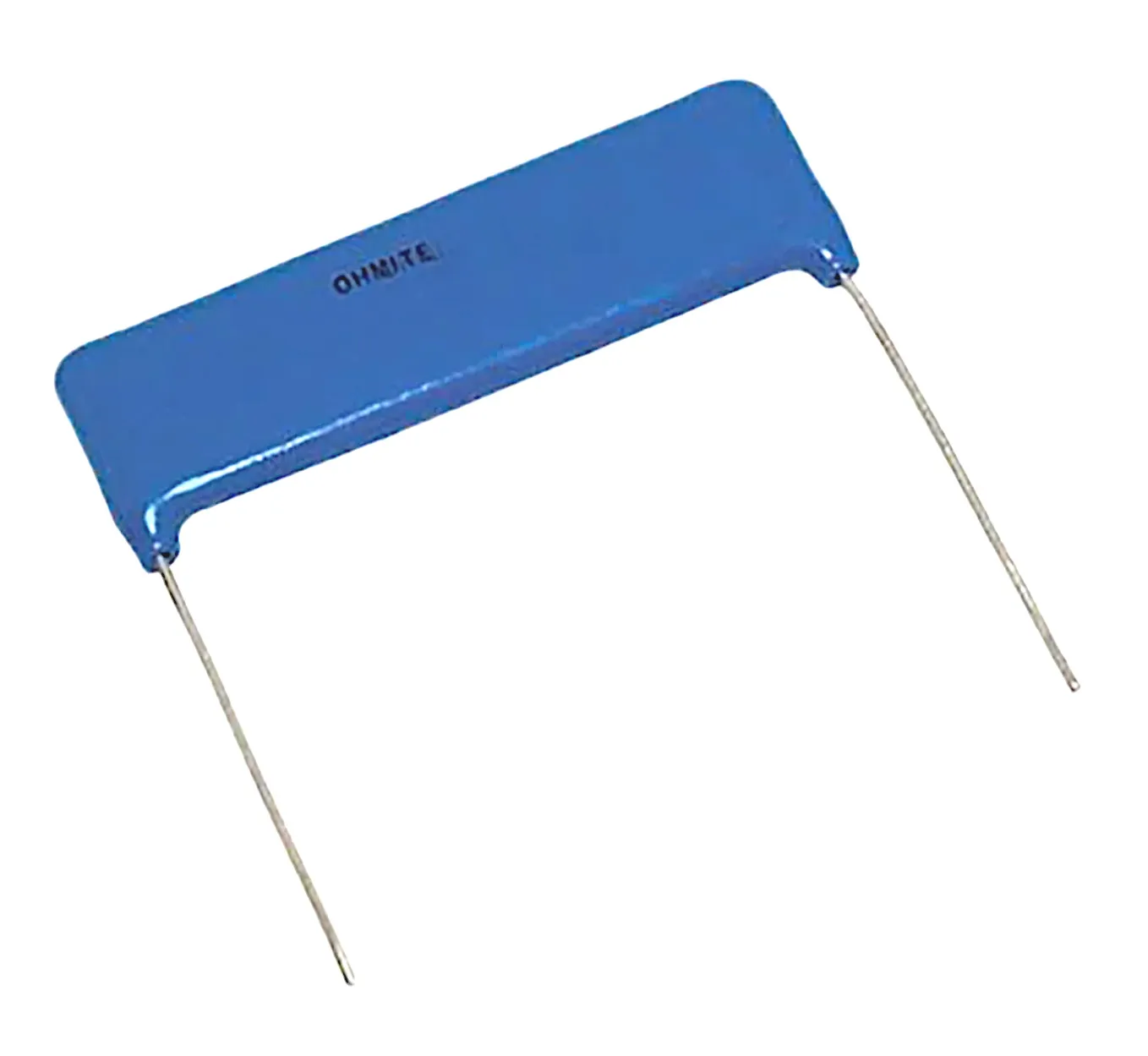

Højspændingsmodstand 100Mohm, 20000V, 1%
Varenummer:
131-011
Varekode: SM108031006FE
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Specifikationer
| Effekt, max. | 2.5 W |
|---|---|
| Modstand | 100 MΩ |
| Tolerance | ±1 % |
- RESISTOR 20KV 100 MEG 1%
- Product Range: OHMITE - Slim-Mox Series
- Resistance: 100Mohm
- Power Rating: 2.5W
- Resistance Tolerance: ± 1%
- Resistor Case Style: Radial Leaded
- Resistor Element Material: Thick Film
- Temperature Coefficient: ± 25ppm/°C
- Voltage Rating: 20kV
- SVHC: No SVHC (20-Jun-2013)
- External Depth: 8.64mm
- External Length / Height: 52.83mm
- External Width: 2.54mm
- Height: 52.83mm
- Lead Diameter: 0.813mm
- Lead Length: 33mm
- Lead Spacing: 48.26mm
- Operating Temperature Max: 110°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +110°C
- Resistor Mounting: Through Hole
- Series: Slim-Mox
Inkl. moms
Kr. 100,00
- v/10 – Kr. 75,00
Produktfiler
Højspændingsmodstand 100Mohm, 20000V, 1%
131-011
/ SM108031006FE
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Specifikationer
- Effekt, max. 2.5 W
- Modstand 100 MΩ
- Tolerance ±1 %
- RESISTOR 20KV 100 MEG 1%
- Product Range: OHMITE - Slim-Mox Series
- Resistance: 100Mohm
- Power Rating: 2.5W
- Resistance Tolerance: ± 1%
- Resistor Case Style: Radial Leaded
- Resistor Element Material: Thick Film
- Temperature Coefficient: ± 25ppm/°C
- Voltage Rating: 20kV
- SVHC: No SVHC (20-Jun-2013)
- External Depth: 8.64mm
- External Length / Height: 52.83mm
- External Width: 2.54mm
- Height: 52.83mm
- Lead Diameter: 0.813mm
- Lead Length: 33mm
- Lead Spacing: 48.26mm
- Operating Temperature Max: 110°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +110°C
- Resistor Mounting: Through Hole
- Series: Slim-Mox
