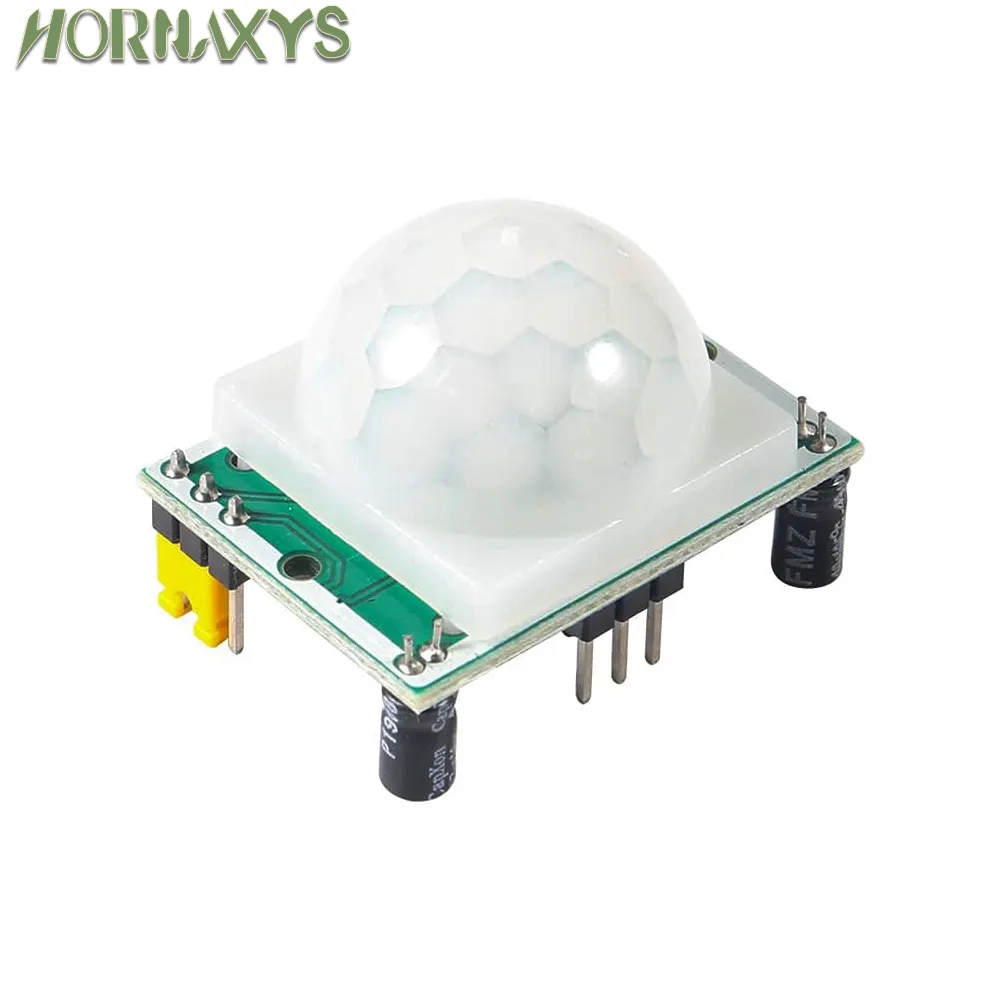

PIR Sensor Detector Module HC-SR501
Varenummer:
130-870
Varekode: HC-SR501
Vægt: 44 g
10 stk.
på lager
Details
Features:
- Using pyroelectric PIR sensor, Fresnel
- Low-power, static power 65uA
- Wide voltage range, DC 5V-20V
- Board small size 38 * 28mm (32 * 24 * mm)
- Repeatable / not repeatable trigger mode selection
- Easy to use, power + - signal output
- 7 m sensing range
- 110 ° angle sensor
Electrical Parameters:
- Operating voltage range of 5-20V DC voltage
- 65uA quiescent current
- High output level 3.3 V / Low 0V
- Non-repeatable trigger L trigger / H Repeat Trigger
- PCB dimensions 38 * 28mm (32 * 24 * mm)
- 110 ° angle sensor
- 7 m sensing range
Applications:
- Security products, Toys, body sensor lighting control, industrial automation
- Pyroelectric infrared switch BISS0001 accompanied by a pyroelectric infrared sensor and a small amount of external components, consisting of passive infrared
- Sensing of a security zone for automatic lighting, lighting and alarm systems.
Gammelt varenummer: MODU0003
