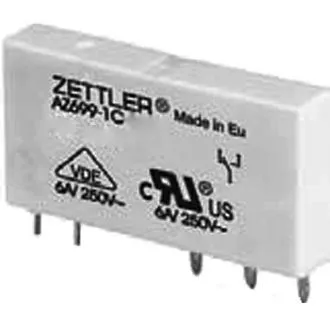

Relay SPDT 5V 6A 147R
Varenummer:
129-800
Varekode: AZ699-1C-5DEA
Vægt: 42 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Specifikationer
| Relæ kontakt | SPDT |
|---|---|
| Mærkestrøm | 6 A |
| Spolespænding | 5 V |
| Spolemodstand | 147 Ω |
Erstatter V23092-A1905-A301
Press release involving the AZ6991:
- AZ6991 Series Subminiature Slim Package, High Sensitivity 6 Amp Power Relay
Features:

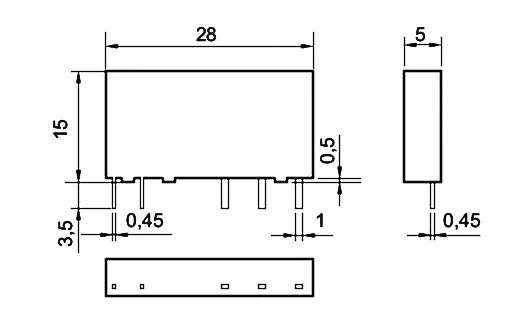

- Extremely small footprint (only 0.22 sq in.)
- Thin vertical profile only 0.196 in. wide
- 6 Amp switching capability
- Isolation spacing greater than 8 mm
- Dielectric strength of 4000 Vrms
- High sensitivity
- UL, CUR approvals
| Epoxy Sealed | Contact Form | Contact Rating | Coil Voltages |
| Yes | 1 Form A and C | 6 A at 277 VAC 6 A at 30 VDC R300 Pilot Duty | 3 thru 60 VDC |
| Coil Power at Pickup Voltage (typical) | Dielectric Strength (at sea level for 1 min.) | ||
| 95 mW | Contact to Coil: 4000 Vrms Between Open Contacts: 1000 Vrms | ||
| Typical Life - Electrical | Typical Life - Mechanical | ||
| 30,000 operations at rated load | 10,000,000 operations | ||
| Terminals PC | Terminals Solder / Plug-In | Terminals Bracket Mount | Approvals |
| THT | No | No | UL/CUR |
Produktfiler
