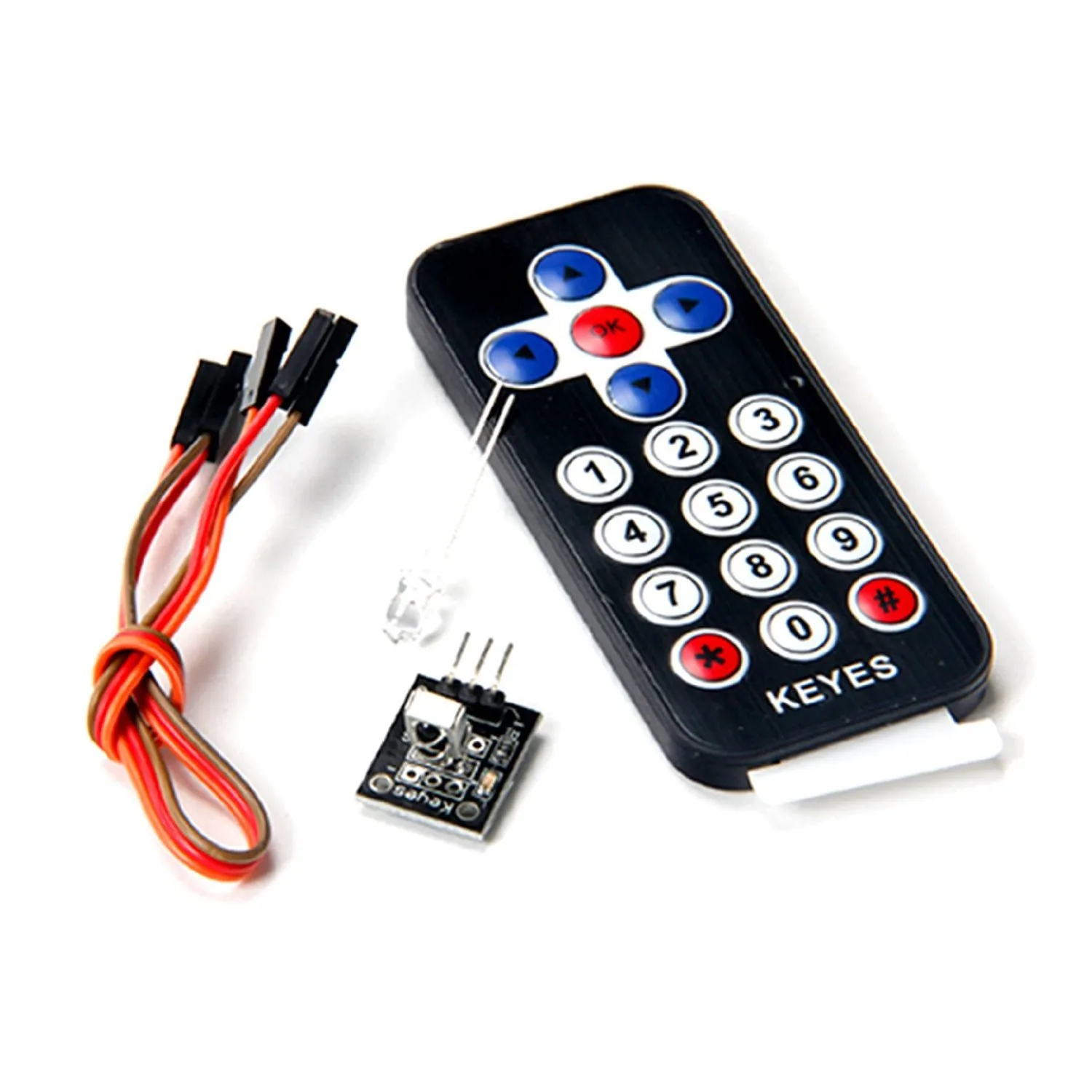

IR Receiver Module Wireless Remote Control Kit
Details
- Remote control with 21 buttons
- Transmission Frequency: 38KHz
- Protocol: NEC
- Launch Distance: More than 8m (depending on the surrounding environment, sensitivity of receiver etc)
- Effective Angle: 60 degrees
- Sticking Material: 0.125mm PET
- Static Current: 3~5uA, Dynamic Current: 3~5mA
- Remote control powered by 1 x CR2025 cell (included)
IR Receiver pinout:
1) GND
2) +5V
3) Signal out
Package contents:
- 1 x Remote controller
- 1 x IR receiver module
- 1 x LED
- 1 x Dupont cable
