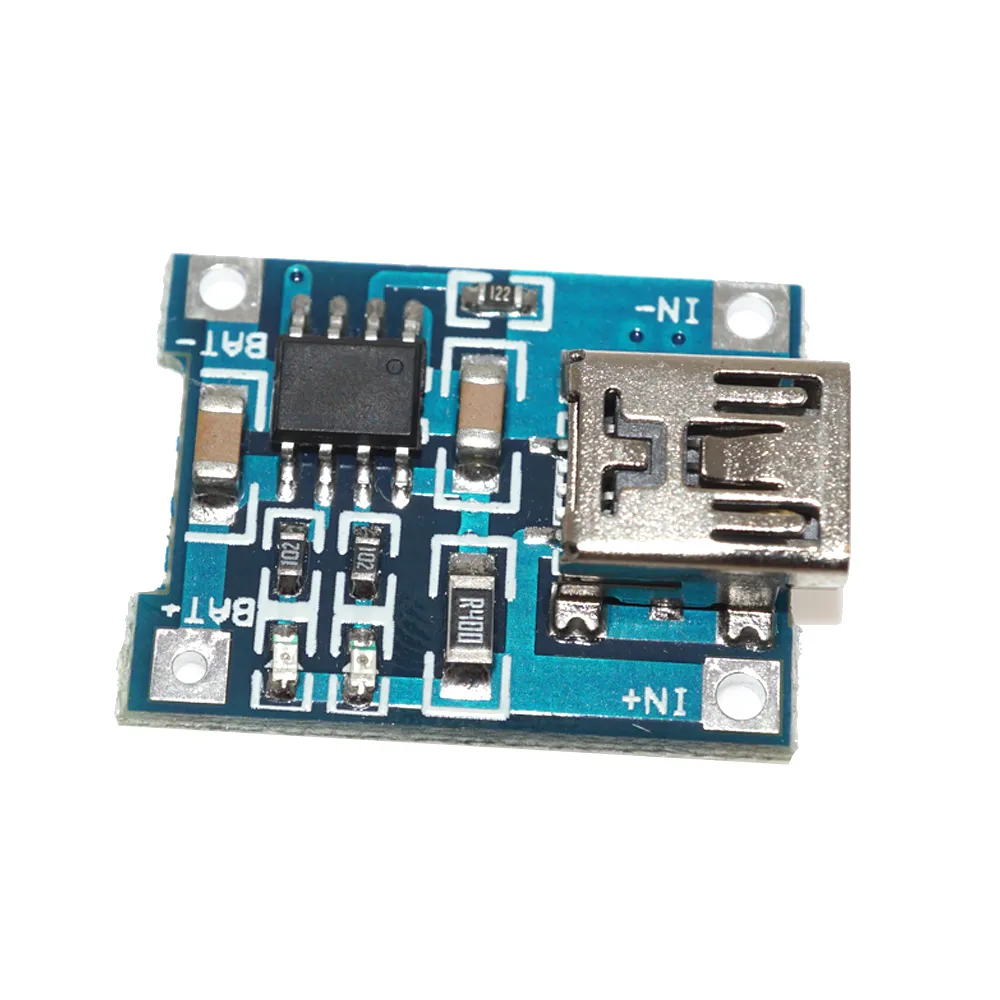

Mini Lithium Battery 5V USB 1A Charging Board

Varenummer: 129-670
Varekode: BATT0003
Vægt: 10 g
99 stk. på lager
Bestil nu for afsendelse mandag d. 23/11
Vis lignende produkter i kategorien "Power- og relæ-moduler"

Mini USB  TP4056 1A Li-ion Charging & Protection Board for 18650 Battery



Product Description

Module features and parameters

The input terminal is equipped with a MINI female socket

You can directly use the mobile phone charger as input to charge the lithium battery.

And it still retains the input voltage connection solder joints, which can be very conveniently DIYED

Input voltage: 5V

Charging cut-off voltage: 4.2V ±1%

Maximum charging current: 1000mA

Battery over-discharge protection voltage: 2.5V

Battery overcurrent protection current: 3A


Usage method

Note: When the battery is connected for the first time, there may be no voltage output between OUT+ and OUT-. At this time, connecting a 5V voltage and charging it can activate the protection circuit. If the battery is short-circuited from B+ and B- and then connected again, it also needs to be charged to activate the protection circuit. When using a mobile phone charger for input, please note that the charger must be capable of outputting 1A or more; otherwise, it may not charge normally

The MINI USB female port and the + - - pads beside it are the power input terminals, connected to a 5V voltage. Connect B+ to the positive terminal of the lithium battery and B- to the negative terminal of the lithium battery. The OUT+ and OUT- are connected to loads, such as the positive and negative poles of a mobile boost board or other loads.

Connect the battery to B+ B-, insert the phone charger into the USB female port. A red light indicates that it is charging, and a blue light indicates that it is fully charged.

Inkl. moms
Kr. 10,00
