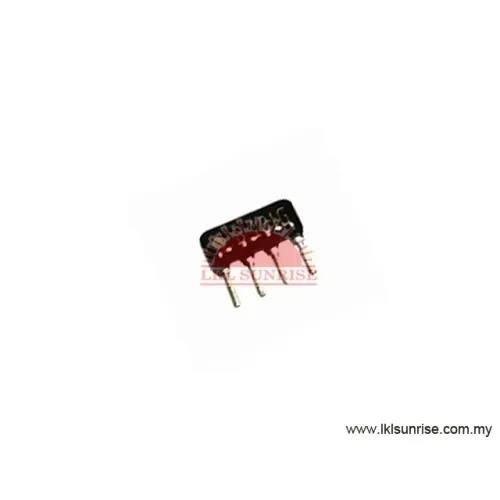

SIL-Resistor 2R/4P 100R
Varenummer:
129-310
Varekode: RNY04PE100
10 stk.
på lager
Bestil nu for afsendelse i morgen
Specifikationer
| Tolerance | ±5 % |
|---|---|
| Modstand | 100 Ω |
| Effekt, max. | 0.3 W |
Gruppe:
C1714
Thick Film Resistor Networks
Series: RNY
Discrete Circuit
Power: 0,2W
Tolerance: 5%
Pitch: 2,54mm
C1714
Thick Film Resistor Networks
Series: RNY
Discrete Circuit
Power: 0,2W
Tolerance: 5%
Pitch: 2,54mm
| Features |
| • Compact size • Excellent stability • Single in-line |
 |
| Technical Specifications |
| |
| Power Rating (P70): | 0,2W |
| Tolerance: | ±5% |
| Working Voltage UMax.: | 100V |
| Temperature Range: | -55...+125°C |
| Temperature Coefficient: | 100ppm |
| Soldering Regulations: | +230°C/5s |
| |
| Dimensions |
| Part Nr. | Number of | Number of | LMax. |
| Resistors | Pins | [mm] | |
| RNY06P_ | 3 | 6 | 15,3 |
| RNY08P_ | 4 | 8 | 20,4 |
| RNY10P_ | 5 | 10 | 25,4 |
| |||
| Labelling |
| In accordance with EIA-code |
|
| Additional Products |
| Thick Film Resistor Networks with 6 (12 pins) resistor elements available on request. Orders of 5000 pieces, delivery time approx. 12 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 100 pieces |
|
| Manufacturer |
| Various |
|
Inkl. moms
Kr. 1,64
- v/10 – Kr. 1,17
