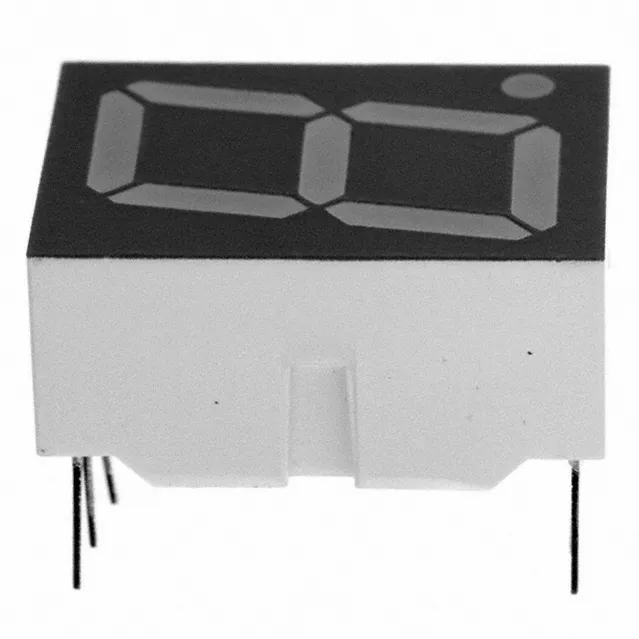

7Seg 14,22mm CA Red 4,2mcd
Varenummer:
128-963
Varekode: HDSP-H101
18 stk.
på lager
- LED DISPLAY, 0.56", RED
- No. of Digits / Alpha: 1
- Character Size: 14.22mm
- LED Colour: Red
- Common Connection: Common Anode
- Luminous Intensity: 4.2mcd
- Forward Current If: 20mA
- Forward Voltage: 1.8V
- SVHC: No SVHC (20-Jun-2013)
- Background Colour: Grey
- Character Type: 8.
- Current If Luminous Intensity: 1mA
- External Depth: 8mm
- External Length / Height: 17.02mm
- External Width: 12.57mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 1.6V
- Forward Voltage per Segment @ If: 1.6V
- Lead Spacing: 2.54mm
- Luminous Intensity per Segment @ If Max: 4.2mcd
- Luminous Intensity per Segment @ If Min: 0.7mcd
- Luminous Intensity per Segment @ If Typ: 0.7mcd
- No. of Characters: 1
- Nom Current If per Segment: 1mA
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +105°C
- PIV Max: 3V
- Peak Forward Current: 45mA
- Row Pitch: 15.24mm
Inkl. moms
Kr. 13,75
- v/10 – Kr. 12,50
