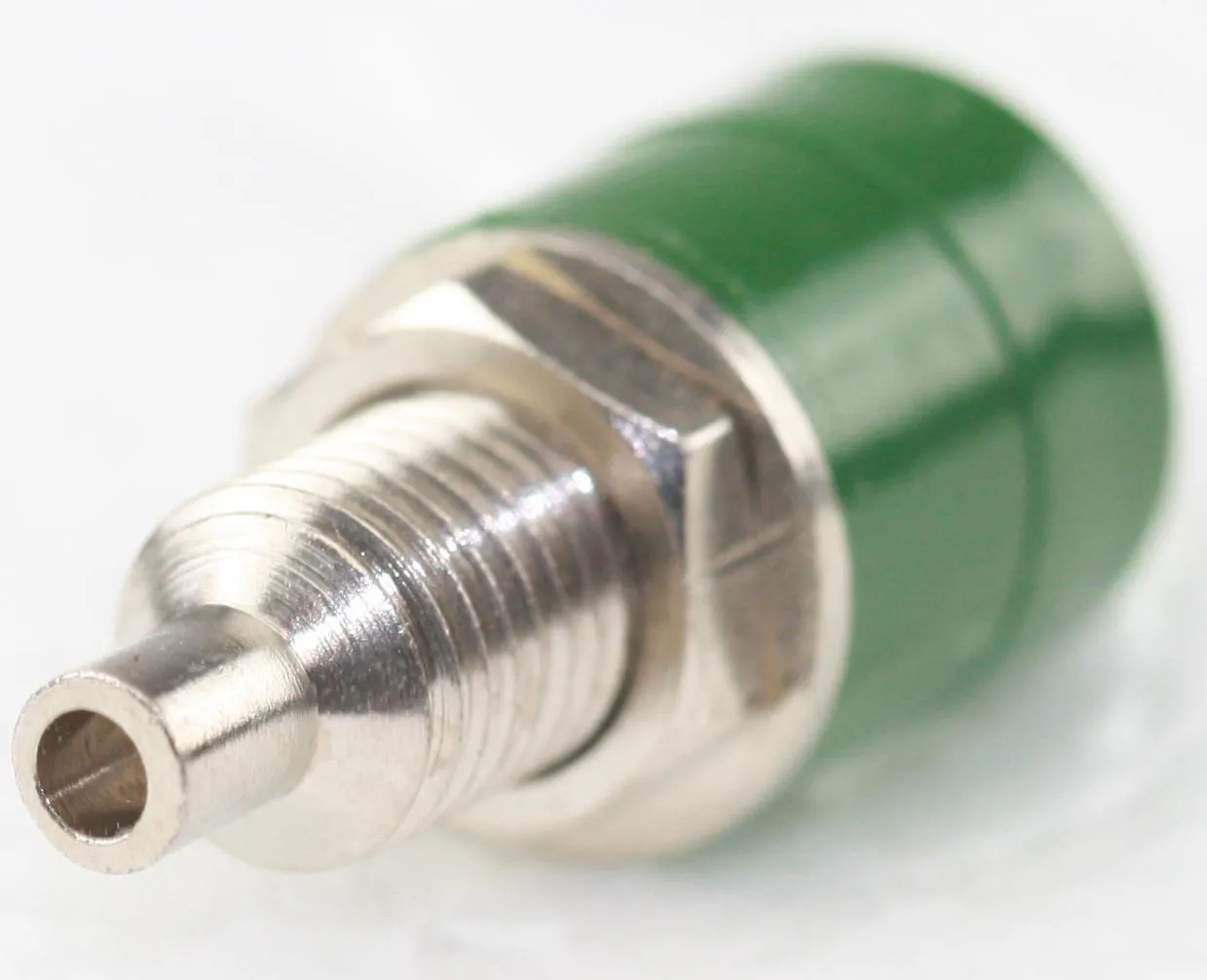

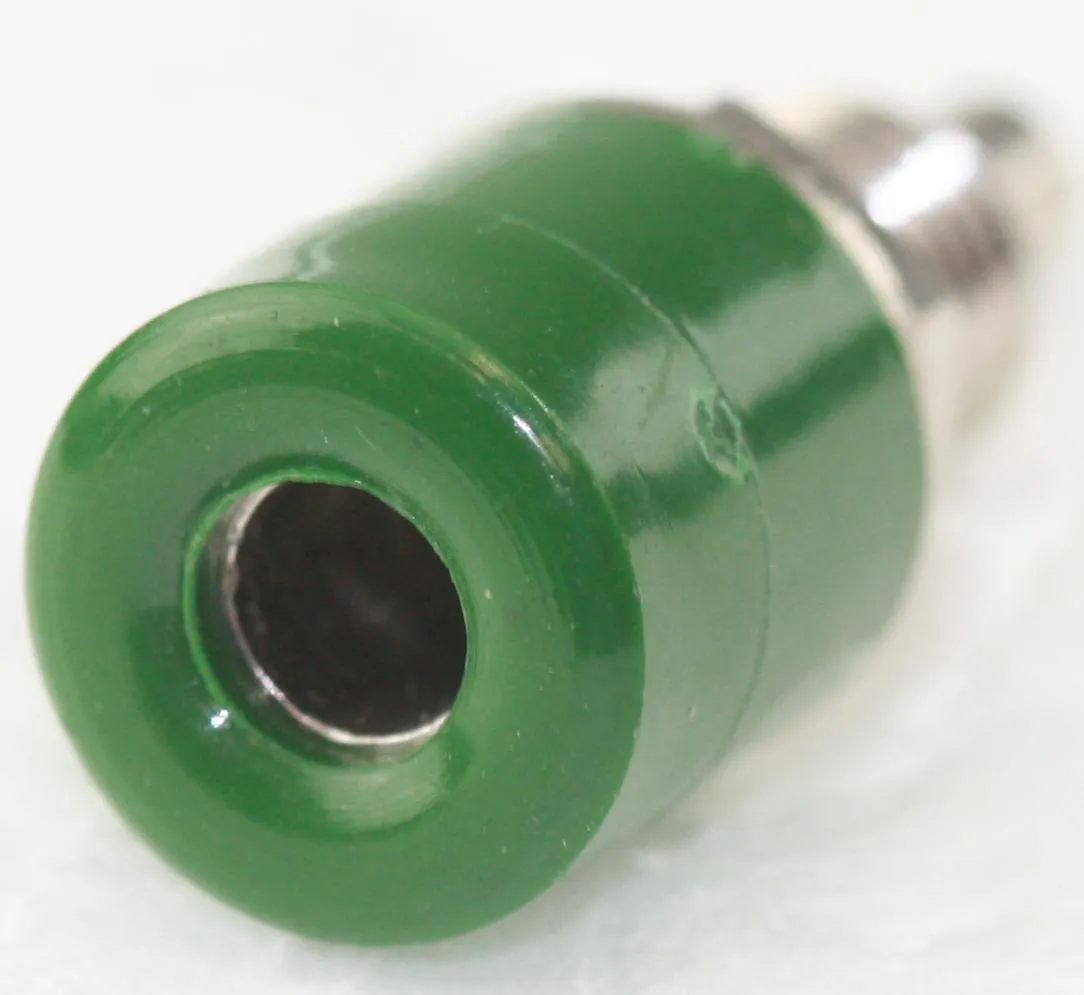

Banan Bøsning (Chassis) 4mm Grøn
Varenummer:
128-436
Varekode: RC11-GREEN
26 stk.
på lager
- BINDING POST, 16A, 4MM, PANEL, Green
- Series: RC11
- Contact Termination: Solder
- Current Rating: 16A
- Voltage Rating: 60V
- Contact Plating: Tin
- Contact Material: Brass
- Connector Colour: Green
- Connector Mounting: Panel
- SVHC: No SVHC (20-Jun-2013)
- Contact Resistance: 5mohm
- External Length / Height: 23.5mm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Panel Cutout Diameter: 6mm
- Panel Thickness: 4mm
- Proof Voltage: 1500V
