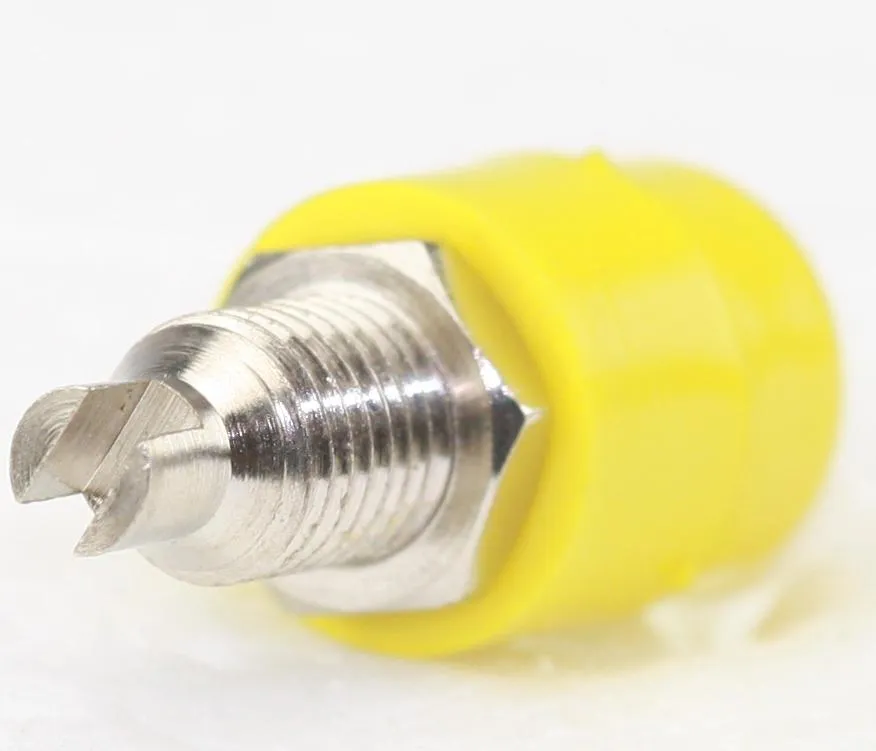

Banan Bøsning (Chassis) 4mm Gul
Varenummer:
128-428
Varekode: BIL20-YELLOW
2 stk.
på lager
- Fabrikat: Hirschmann
- BINDING POST, 32A, 4MM, PANEL, Yellow
- Series: BIL 20
- Contact Termination: Solder
- Current Rating: 32A
- Voltage Rating: 60V
- Contact Plating: Tin
- Contact Material: Brass
- Connector Colour: Black
- Connector Mounting: Panel
- SVHC: No SVHC (20-Jun-2013)
- Contact Resistance: 5mohm
- External Length / Height: 23.5mm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Panel Cutout Diameter: 8mm
- Panel Thickness: 2mm
- Proof Voltage: 1500V
