N-male - N-male 50R Han/Han 1,8m.

Varenummer: 128-391
Varekode: 6662352208
0 stk. på lager
Vis lignende produkter i kategorien "Kabel"

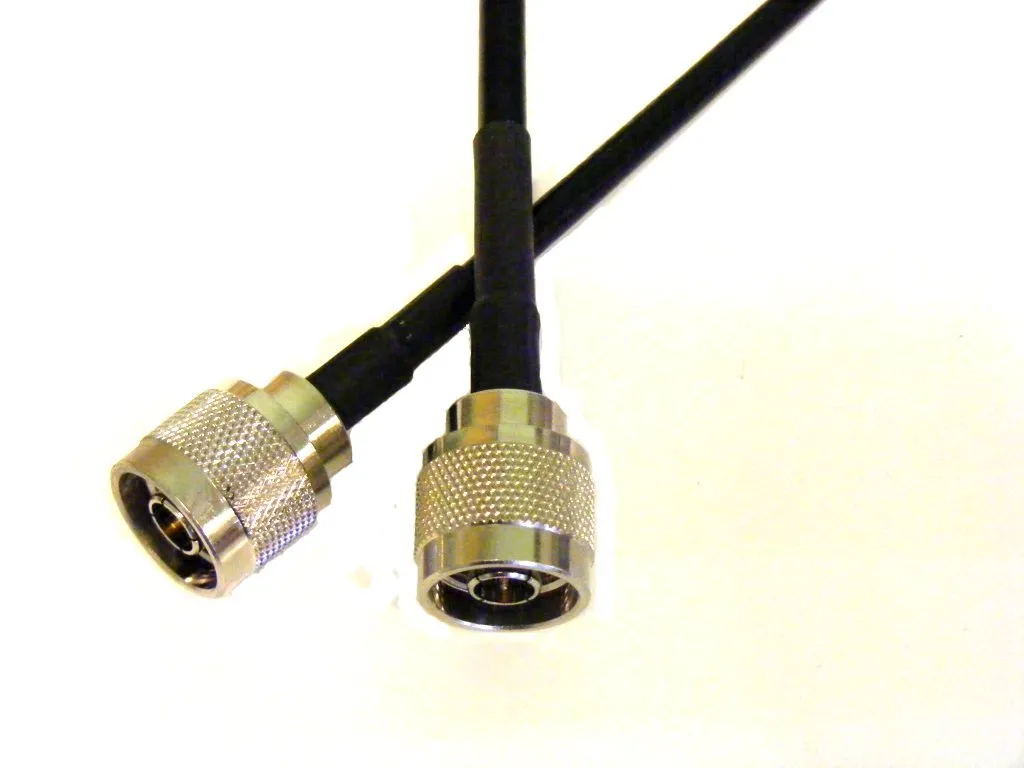

6ft.LMR200 Low Loss Coaxial Cable (N Male to N Male)
- LMR200 50Ω series cabling
- N Plug to N Plug connectors
- High grade Edison 200 cable.

This type of connector setup is best used for connecting two antennas that terminate with N connectors. If connecting with a FME patch cable we recommend using LMR195 N to FME conversion cable.

This cable is designed to be a weatherproof high performance alternative to standard RG58. LMR200 maintains a 5mm diameter and trades flexibility for far superior electrical shielding and much lower attenuation. Also known as LL195 cabling.

Electrical Specifications

Resistance: 50Ω
Capacitance: 80pF/m
Signal Loss: 0.32dB/m @ 850MHz, 0.51dB/m @ 2100MHz
Frequency Range: DC-6GHz
Maximum Recommended Length: 25m
Velocity of Propagation: 83%
Nominal Delay: 4.02ns/m
VSWR: <1.25:1
Mechanical Specifications

Weight/100m: 3.0kg
Minimum Bend Radius: 12.7mm
Conductor Material: Single Strand Solid Copper (1.12mm)
Insulating Material: Gas-injected FHDPE (2.95mm)
Outer Shield Material:
- (1) Bonded Aluminium Polyester Tape 100% Coverage (3.07mm)
- (2) Tinned Copper Wire 88% Coverage (3.66mm)
Outer Jacket Material: PVC Weather & UV Resistant (4.95mm ±0.15mm)
Inkl. moms
Kr. 199,00
