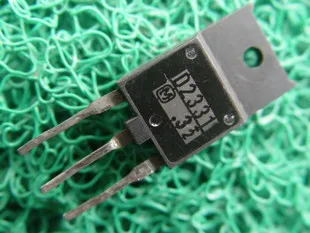

N-DARL+D 1500V 3A 40W TO-218ISO
Type Designator: 2SD2331
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 40
Maximum collector-base voltage |Ucb|, V: 1500
Maximum collector-emitter voltage |Uce|, V: 600
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 3.5
Maximum junction temperature (Tj), °C:
Transition frequency (ft), MHz: 3
Collector capacitance (Cc), pF:
Forward current transfer ratio (hFE), min: 8
Noise Figure, dB: -
Package of 2SD2331 transistor: TO 218ISO
N-DARL+D 1500V 3A 40W TO-218ISO
Type Designator: 2SD2331
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 40
Maximum collector-base voltage |Ucb|, V: 1500
Maximum collector-emitter voltage |Uce|, V: 600
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 3.5
Maximum junction temperature (Tj), °C:
Transition frequency (ft), MHz: 3
Collector capacitance (Cc), pF:
Forward current transfer ratio (hFE), min: 8
Noise Figure, dB: -
Package of 2SD2331 transistor: TO 218ISO
